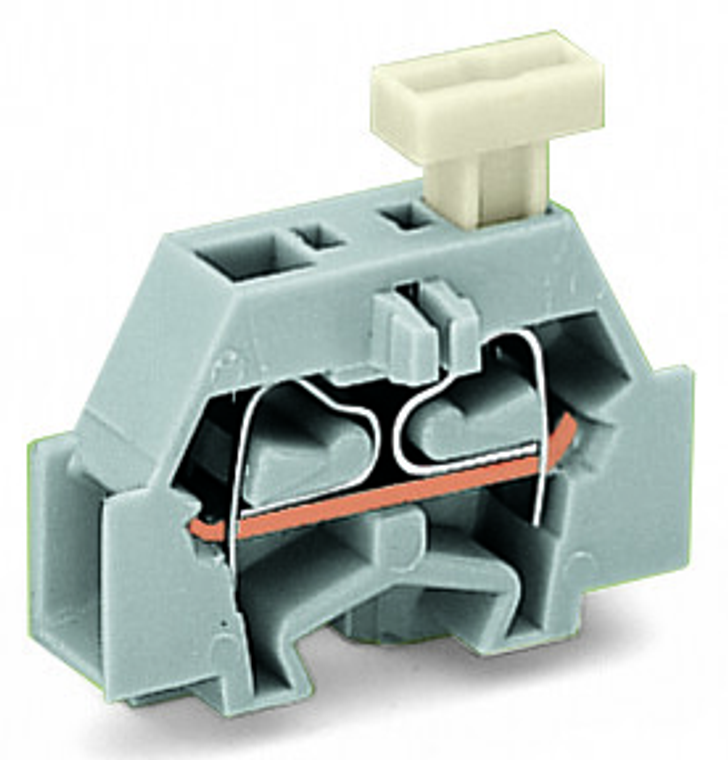

2-conductor terminal block; on one side with push-button; with fixing flange; 1-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ã; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray.
The WAGO 261 series feed-through terminal block is a gray, single-deck unit with a button on one side, a fixing flange, and side marking slots. It features one feed-through pole for connecting two wires using CAGE CLAMP spring connections, suitable for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #14AWG. The terminal block is rated for a current of 24A and includes a 3.2mm fixing hole for mounting. It is equivalent to the model number 261301331000.
- actuation type:
- Operating tool || Push-button, one side
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 28.1 mm / 1.106 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.054 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.3 mm / 0.917 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- Mounting flange
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- pole no:
- 1
- rated current:
- 24 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 2.400 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Side-entry wiring
