2-conductor terminal block; without push-buttons; with fixing flange; 1-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ã; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray.

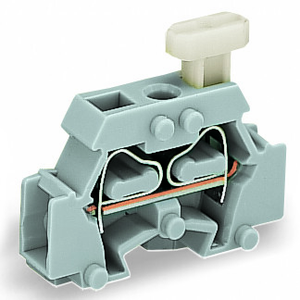

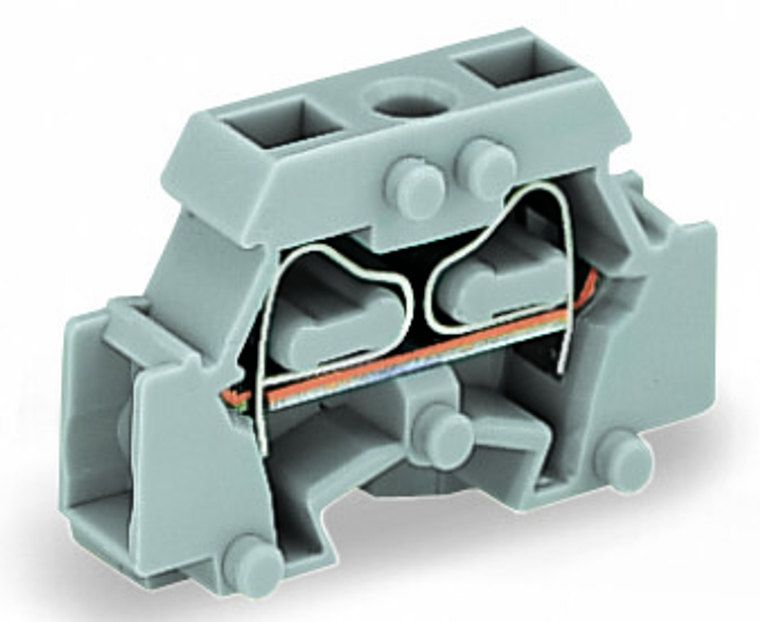

The WAGO 261 series feed-through terminal block is a gray, single-deck unit with side marking slots, designed for one feed-through pole and two wires using one clamp each. It accommodates wire sizes from 0.08mm² to 2.5mm² (#28AWG to #14AWG) and supports a rated current of 24A. The terminal block features CAGE CLAMP spring connections and has a 3.2mm fixing hole for mounting, equivalent to model 261411.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP«
- country of origin sales organisation germany:
- CH
- depth:
- 28.1 mm / 1.106 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 ª 2.5 mm / 28 ª 14 AWG
- fire load:
- 0.044 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 18.1 mm / 0.713 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) « Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- Mounting flange
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 24 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 ª 2.5 mm / 28 ª 14 AWG
- strip length:
- 8 ª 9 mm / 0.31 ª 0.35 inch
- weight:
- 2.420 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Side-entry wiring
