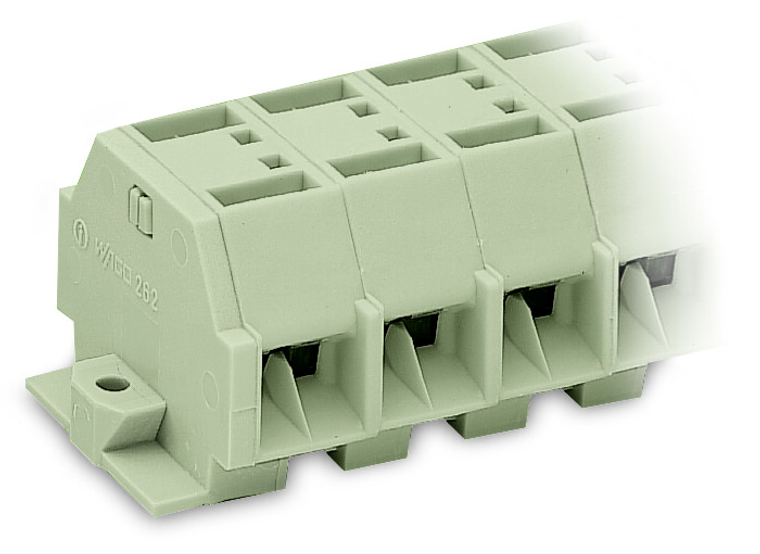

4-conductor terminal strip; without push-buttons; suitable for Ex e II applications; with fixing flanges; 8-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ã; 4 mm²; CAGE CLAMP; 4,00 mm²; light gray.
The WAGO 262 series feed-through terminal strip is a light gray, 1-deck/level component suitable for Ex e II applications. It features 8 feed-through poles, accommodating 32 wires with 16 clamps on each side, and supports wire sizes from 0.5mm² to 4mm² or #20AWG to #12AWG. Rated for a current of 30A, it utilizes CAGE CLAMP spring connections and has a 3.2mm fixing hole for mounting, equivalent to model 262238.
- actuation type:
- Operating tool
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 33.5 mm / 1.319 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 4 mm / 20 12 AWG
- fire load:
- 0.944 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.1 mm / 0.909 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- module width:
- 12 mm / 0.472 inch
- mounting type:
- Mounting flange
- packaging type:
- Box
- pole no:
- 8
- rated current ex e ii:
- 30 A
- rated voltage en ex e ii:
- 550 V
- solid conductor:
- 0.5 4 mm / 20 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 58.729 g
- width:
- 110.5 mm / 4.35 inch
- wiring direction:
- Side-entry wiring
