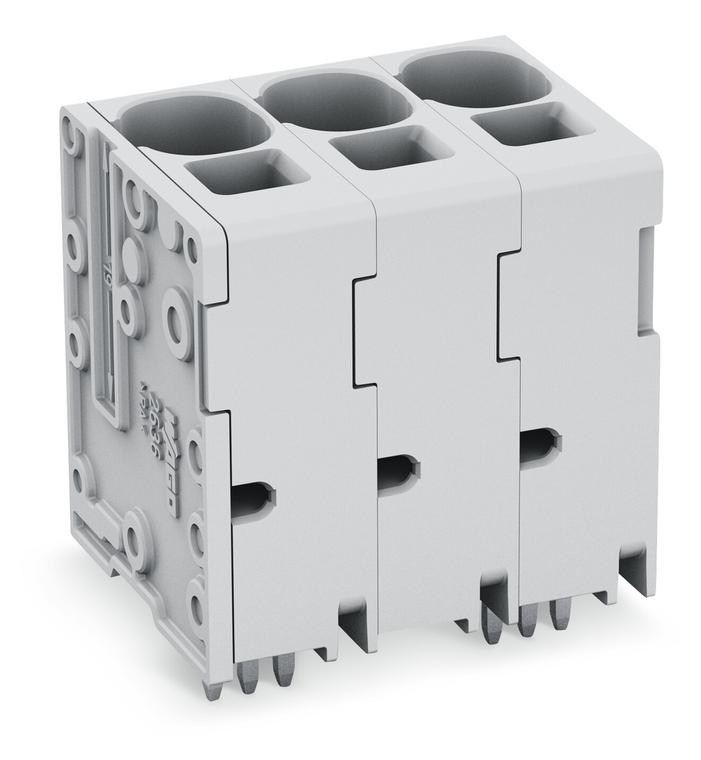

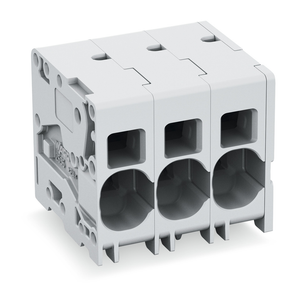

WAGO 2636-3103/010-000 PCB Terminal Block, 3-Pole, 10mm Pitch, Push-In CAGE CLAMP®, 16mm², Gray
Wago
$10.06
PCB terminal block 16 mm² Pin spacing 10 mm 3-pole, gray.
The WAGO component equivalent to 26363103010000 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- actuation type:
- Operating tool
- approvals per:
- CSA
- clamping spring material:
- Chrome-nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 90 °
- connection technology:
- Push-in CAGE CLAMP®
- CONTACT MATERIAL:
- Electrolytic copper (ECu)
- CONTACT PLATING:
- Tin
- CONTINUOUS OPERATING TEMPERATURE:
- -60 ¢¦ +105 °C
- COUNTRY OF ORIGIN VKORG GERMANY:
- PL
- CUSTOMS TARIFF NUMBER VKORG GERMANY:
- 85369010000
- DEPTH:
- 24.8 mm / 0.976 inches
- DRILLED HOLE DIAMETER WITH TOLERANCE:
- 1.7 (+0.1) mm
- FINE STRANDED CONDUCTOR:
- 0.75 ¢¦ 25 mm² / 18 ¢¦ 4 AWG
- FINE STRANDED CONDUCTOR WITH INSULATED FERRULE:
- 0.75 ¢¦ 16 mm²
- FINE STRANDED CONDUCTOR WITH TWIN FERRULE:
- 0.75 ¢¦ 6 mm²
- FINE STRANDED CONDUCTOR WITH UNINSULATED FERRULE:
- 0.75 ¢¦ 16 mm²
- FIRE LOAD:
- 0.000 MJ
- FLAMMABILITY CLASS PER UL94:
- V0
- INSULATION MATERIAL:
- Polyamide (PA66)
- LEGEND RATINGS:
- (III / 2) ¢ Overvoltage category III / Pollution degree 2
- LIMIT TEMPERATURE RANGE:
- -60 ¢¦ +105 °C
- MATERIAL GROUP:
- I
- MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:
- MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=
- MISMATING PROTECTION:
- MOUNTING NOTE=
- MOUNTING TYPE:
- Feed-through mounting
- NOMINAL VOLTAGE II 2:
- 1000 V
- NOMINAL VOLTAGE III 3:
- 1000 V
- NOTE MATERIAL DATA:
- Information on material data can be found here
- NUMBER OF SOLDER PINS PER POTENTIAL:
- 3
- PCB CONTACT:
- THT
- PIN SPACING:
- 10 mm / 0.394 inches
- POLE NUMBER:
- 3
- PROCESSING TEMPERATURE:
- -35 ¢¦ +105 °C
- PRODUCT GROUP CODE:
- 4
- RATED CURRENT:
- 76 A
- RATED CURRENT CSA USE GROUP B:
- 66 A
- RATED CURRENT CSA USE GROUP C:
- 66 A
- RATED CURRENT UL USE GROUP B:
- 66 A
- RATED CURRENT UL USE GROUP C:
- 66 A
- RATED IMPULSE VOLTAGE III 2:
- 8 kV
- RATED IMPULSE VOLTAGE III 3:
- 8 kV
- RATED SURGE VOLTAGE II 2:
- 8 kV
- RATED VOLTAGE CSA USE GROUP B:
- 600 V
- RATED VOLTAGE CSA USE GROUP C:
- 600 V
- RATED VOLTAGE III 2:
- 1000 V
- RATED VOLTAGE UL USE GROUP B:
- 600 V
- RATED VOLTAGE UL USE GROUP C:
- 600 V
- RATINGS PER:
- IEC/EN 60664-1
- SOLDER PIN ARRANGEMENT:
- Over the entire terminal strip (staggered)
- SOLDER PIN DIMENSIONS:
- 1.2 x 1 mm
- SOLDER PIN LENGTH:
- 4 mm
- SOLID CONDUCTOR:
- 0.75 ¢¦ 16 mm² / 18 ¢¦ 4 AWG
- STRIP LENGTH:
- 18 ¢¦ 20 mm / 0.71 ¢¦ 0.79 inches
- VARIANTS:
- Other pole numbers || Direct marking || Other colors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.
- WEIGHT:
- 24.652 g
- WIDTH:
- 31.6 mm / 1.244 inches
