Wago

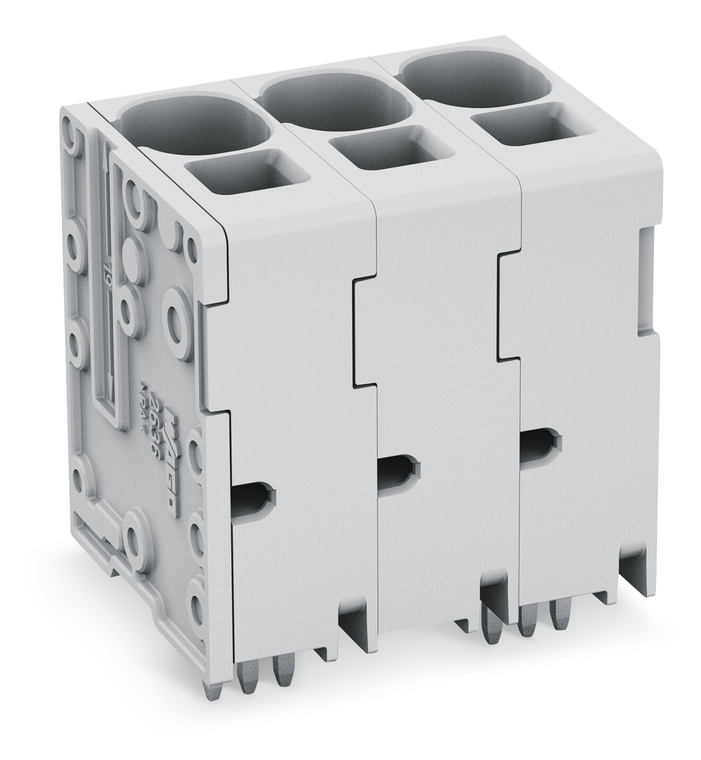

WAGO 2636-3105/020-000

SKU:

2636-3105/020-000

UPC:

MPN:

2636-3105/020-000

Condition:

New

actuation type:

Operating tool

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

conductor connection direction to pcb:

90

connection technology:

Push-in CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

DE

depth:

24.8 mm / 0.976 inch

drilled hole diameter with tolerance:

1.7 (+0.1) mm

fine stranded conductor:

0.75 25 mm / 18 4 AWG

fine stranded conductor with insulated ferrule:

0.75 16 mm

fine stranded conductor with twin ferrule:

0.75 6 mm

fine stranded conductor with uninsulated ferrule:

0.75 16 mm

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

35.3 mm / 1.39 inch

height from the surface:

31.3 mm / 1.232 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

mounting type:

Feed-through mounting

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

1000 V

number of solder pins per potential:

3

packaging type:

Box

pcb contact:

THT

pin spacing:

10 mm / 0.394 inch

pole no:

5

rated current:

76 A

rated current csa use group b:

66 A

rated current csa use group c:

66 A

rated current ul use group b:

66 A

rated current ul use group c:

66 A

rated surge voltage ii 2:

8 kV

rated surge voltage iii 2:

8 kV

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage iii 2:

1000 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (staggered)

solder pin dimensions:

1.2 x 1 mm

solder pin length:

4 mm

solid conductor:

0.75 16 mm / 18 4 AWG

strip length:

18 20 mm / 0.71 0.79 inch

weight:

40.620 g

width:

51.6 mm / 2.031 inch
