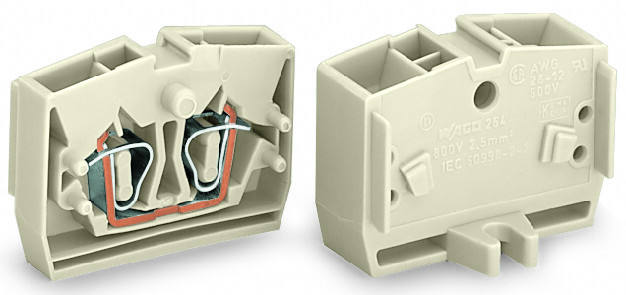

WAGO 264-230 4-conductor end terminal block, suitable for Ex e II applications, without push-buttons, with fixing flange, for screw or similar mounting types, fixing hole 3.2 mm Ø, 2.5 mm², CAGE CLAMP®, light gray

4-conductor Ex e II end terminal block; with fixing flange; for screw or similar mounting types; Fixing hole 3.2 mm suitable for Ex e II applications

Electrical Data

• Rated voltage EN (Ex e II): 690 V
• Rated current (Ex e II): 23 A

Connection Data

• Connection technology: CAGE CLAMP
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 0.08 2.5 mm / 28 12 AWG
• Fine-stranded conductor: 0.08 2.5 mm / 28 12 AWG
• Strip length: 8 9 mm / 0.31 0.35 inch
• Total number of connection points: 4
• Total number of potentials: 1
• Number of levels: 1
• Type of wiring: Front-entry wiring
• Note (conductor cross-section): 12 AWG: THHN, THWN

Geometrical Data

• Width: 10 mm / 0.394 inch
• Height from the surface: 22.1 mm / 0.87 inch
• Depth: 32 mm / 1.26 inch

Mechanical Data

• Design: horizontal
• Mounting type: Mounting flange
• Marking level: Center marking

Material Data

• Color: light gray
• Fire load: 0.102 MJ
• Weight: 6.370 g

Commercial data

• Packaging type: BOX
• Country of origin: CH
• GTIN: 4044918414517
• Customs Tariff No.: 85369010000

.

The WAGO 264 series feed-through end terminal block is a light gray, 1-deck/level component with a center marking slot, suitable for Ex e II applications. It features one feed-through pole (1P) with four wires (two clamps + two clamps) and supports wire sizes from 0.08mm² to 2.5mm² or #28AWG to #12AWG. The terminal block is rated for a current of 23A and utilizes CAGE CLAMP spring connections. It has a 3.2mm fixing hole for mounting and is equivalent to model 264230.
