Wago

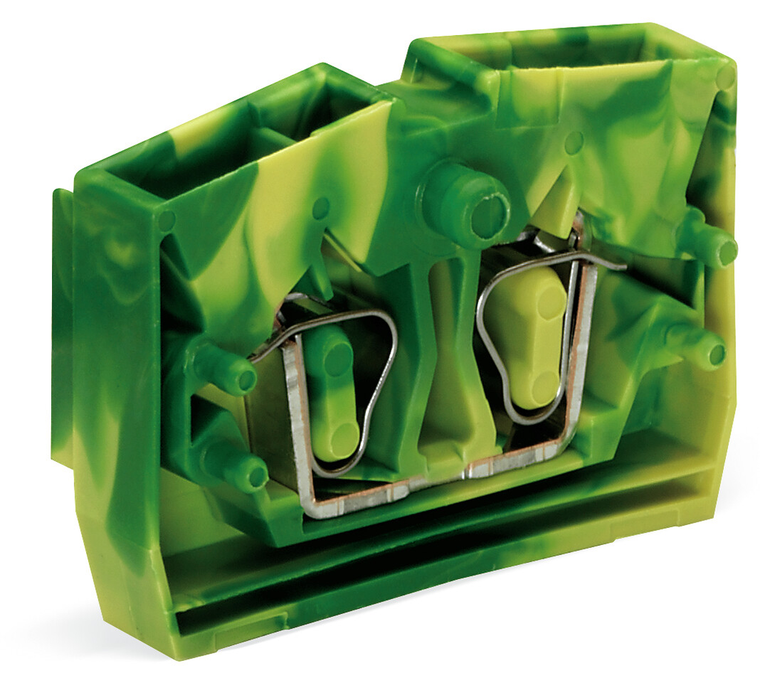

WAGO 264-307 2-conductor end terminal block; without push-buttons; with fixing flange; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; green-yellow

SKU:

264-307

UPC:

MPN:

51123573

Condition:

New

actuation type:

Operating tool

color:

Green-yellow

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

CH

depth:

32 mm / 1.26 inch

design:

Horizontal type

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.075 MJ

flammability class per ul94:

V0

height from the surface:

22.1 mm / 0.87 inch

insulation material:

Polyamide (PA66)

marking level:

Center marking

mounting type:

Mounting flange

note conductor cross section:

12 AWG: THHN, THWN

packaging type:

Box

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

3.864 g

width:

6 mm / 0.236 inch

wiring direction:

Front-entry wiring
