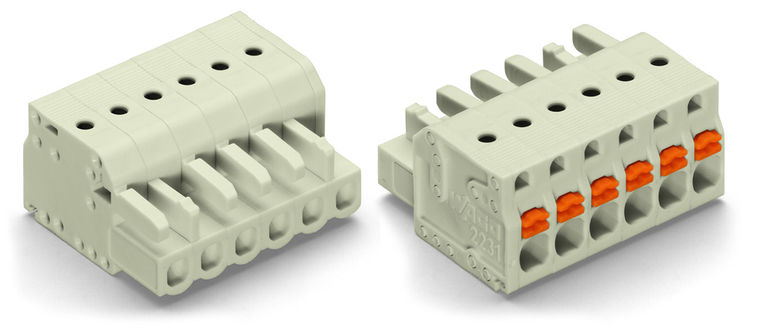

WAGO 2721-110/026-000

(No reviews yet) Write a Review
SKU:
2721-110/026-000
Condition:
New
  • Wago 2721-110/026-000
  • Wago 2721-110/026-000
  • Wago 2721-110/026-000
$14.99

Description

Female connector; with integrated push-buttons; 10-pole; Pin spacing 5 mm / 0.197 in; 100% protected against mismating; codable
View AllClose

Additional Information

actuation type:
Push-button
approvals per:
UL 1059
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Light gray
conductor entry direction to mating direction:
0
connection technology:
Push-in CAGE CLAMP
connector connection type:
For conductor
contact material:
Copper alloy
contact plating:
Tin-plated
contact type pluggable connector:
Female connector/socket
country of origin sales organisation germany:
PL
depth:
25.6 mm / 1.008 inch
fine stranded conductor:
0.2 2.5 mm / 24 12 AWG
fine stranded conductor with insulated ferrule:
0.25 1.5 mm
fine stranded conductor with uninsulated ferrule:
0.25 2.5 mm
fire load:
0.297 MJ
flammability class per ul94:
V0
height:
15 mm / 0.591 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +100 C
locking of plug in connection:
Without
material group:
I
mismating protection:
Yes
nominal voltage ii 2:
630 V
nominal voltage iii 3:
320 V
packaging type:
Box
pin spacing:
5 mm / 0.197 inch
pole no:
10
rated current:
16 A
rated current csa use group b:
15 A
rated current csa use group c:
15 A
rated current csa use group d:
0.416666666666667
rated current ul 1977:
15 A
rated current ul use group b:
15 A
rated current ul use group c:
15 A
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
4 kV
rated surge voltage iii 2:
4 kV
rated surge voltage iii 3:
4 kV
rated voltage csa use group b:
300 V
rated voltage csa use group c:
300 V
rated voltage csa use group d:
300 V
rated voltage iii 2:
320 V
rated voltage ul 1977:
600 V
rated voltage ul use group b:
300 V
rated voltage ul use group c:
150 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60664-1
safety information 1:
The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
solid conductor:
0.2 2.5 mm / 24 12 AWG
strip length:
10 11 mm / 0.39 0.43 inch
weight:
15.850 g
width:
51.5 mm / 2.028 inch
