Wago

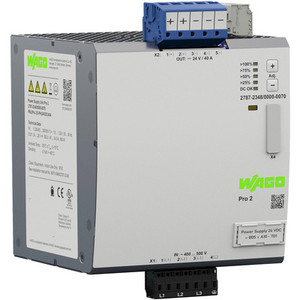

WAGO 2787-2348/000-030

SKU:

2787-2348/000-030

UPC:

MPN:

2787-2348/000-030

Condition:

New

communication:

Communication interface, can be used with WAGO USB Communication Cable (750-923) or IO-Link Communication Module (2789-9080) or Modbus RTU Communication Module (2789-9015)

conformity marking:

CE

connection technology:

CAGE CLAMP«

connection technology 2:

Push-in CAGE CLAMP«

connection type 1:

Input/signaling

connection type 2:

Output

control deviation:

ƒƒ«ƒƒ± 1 %

country of origin sales organisation germany:

CN

current limitation:

1.1 x Io nom (typ.)

default setting:

DC 24 V

depth from upper edge of din rail:

130 mm / 5.118 inch

derating:

Siehe Beipackzettel

efficiency typ:

96.1 % (400 VAC: 40 A: 25 C)

fine stranded conductor:

0.08 ƒƒ‡ª 2.5 mm / 28 ƒƒ‡ª 12 AWG

fine stranded conductor 2:

0.5 ƒƒ‡ª 10 mm / 20 ƒƒ‡ª 8 AWG

fine stranded conductor with insulated ferrule:

0.25 ƒƒ‡ª 1.5 mm / 20 ƒƒ‡ª 16 AWG

fine stranded conductor with insulated ferrule 2:

0.5 ƒƒ‡ª 6 mm

fine stranded conductor with uninsulated ferrule:

0.25 ƒƒ‡ª 2.5 mm / 20 ƒƒ‡ª 14 AWG

fine stranded conductor with uninsulated ferrule 2:

0.5 ƒƒ‡ª 6 mm

fire load:

0.000 MJ

height:

130 mm / 5.118 inch

input current ii:

ƒƒ«ƒƒ± 3 x 1.7 A (400 VAC: 40 ADC)

input voltage range:

(2 / 3) x AC 340 ƒƒ‡ª 550 V

inrush current:

ƒƒ«ƒƒ± 15 A (after 1 ms)

internal fuse:

3 x T 3.2 A / 500 VAC

isolation voltage pri sec ac:

3510 V

isolation voltage sec gnd:

DC 0.5 kV

isolation voltage sec signal:

DC 0.5 kV

mains failure hold up time:

ƒƒ«ƒƒ‘ 20 ms (3 x 400 VAC)

mounting type:

DIN-35 rail

mtbf:

> 800,000 h (per IEC 61709)

nominal input voltage ui nom:

(2 / 3) x AC 400 ƒƒ‡ª 500 V

nominal mains frequency range:

47 ƒƒ‡ª 63 Hz: 0 Hz

nominal output current io nom:

40 A (24 VDC)

nominal output power:

960 W

nominal output voltage uo nom:

DC 24 V (SELV)

note dimensions:

Height without connector || Height with connector: 169 mm

open circuit proof:

Yes

operating altitude max:

5000 m

output voltage range:

DC 24 ƒƒ‡ª 28 V (adjustable)

overload behavior:

TopBoost/PowerBoost/Time-limited constant current mode (other overload behaviors can be set)

overvoltage category:

III (ƒƒ«ƒƒ± 2000 m a. s.l.): II (> 2000 m a. s.l.)

overvoltage protection secondary:

Internal protective circuit || ƒƒ«ƒƒ± 35 VDC (in the event of a fault)

packaging type:

Box

parallel operation:

Yes

phases:

2 || 3

pollution degree:

2

power factor correction pfc:

Active

powerboost:

DC 60 A (5 s)

protection class:

I

protection type:

IP20 (per EN 60529)

recommended backup fusing:

3 x 16 A (for USA/Canada: 3 x 15 A)

relative humidity:

5 ƒƒ‡ª 96 % (no condensation permissible)

required backup fusing:

An external DC fuse is required for the DC input voltage.

residual ripple:

ƒƒ«ƒƒ± 70 mV (Peak-to-peak)

resistance to reverse feed:

ƒƒ«ƒƒ± DC 35 V

series operation:

Yes

short circuit protected:

Yes

signaling:

Optical status indication (DC OK: load: warning and error states) || Digital signal input and output (DI/DO)

solid conductor:

0.08 ƒƒ‡ª 2.5 mm / 28 ƒƒ‡ª 12 AWG

solid conductor 2:

0.5 ƒƒ‡ª 10 mm / 20 ƒƒ‡ª 8 AWG

standards specifications:

EN 61010-1 || EN 61010-2-201 || EN 61204-3 || UL 61010-1 || UL 61010-2-201 || DNVGL || UL HazLoc

strip length:

8 ƒƒ‡ª 9 mm / 0.31 ƒƒ‡ª 0.35 inch

strip length 2:

13 ƒƒ‡ª 15 mm / 0.51 ƒƒ‡ª 0.59 inch

surrounding air temperature operation:

-25 ƒƒ‡ª 70 C (Device starts at ƒƒªƒƒ†40 C (type-tested))

surrounding air temperature storage:

-40 ƒƒ‡ª 85 C

topboost:

Up to 600 %

transient suppression primary:

Yes

wago connector:

WAGO 721 Series

wago connector 2:

WAGO 831 Series

weight:

2000.000 g

width:

120 mm / 4.724 inch
