Description

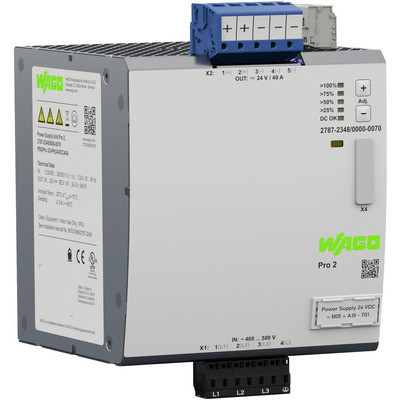

PSU, Pro 2, 3-phase, 24 VDC output voltage, 40 A output current, Conformal Coated.
View AllClose
The Pro2 switch-mode AC/DC power supply unit (SMPS PSU) from WAGO, part of the Pro 2 series, offers a 24Vdc (SELV) output with a current of 40A and power of 960W. It supports an input voltage range of 340-550Vac across 3-phase AC (3AC) systems, including 380Vac, 400Vac, 415Vac, and 480Vac. The unit features TopBoost and PowerBoost functionalities, conformal coating for protection, and optional communication capabilities. It is DNV approved, uses CAGE CLAMP spring connections, and is designed for DIN-35 rail mounting with a width of 120mm. The power supply is rated for operation in ambient temperatures ranging from -25°C to +70°C and has an IP20 protection rating.
