Wago

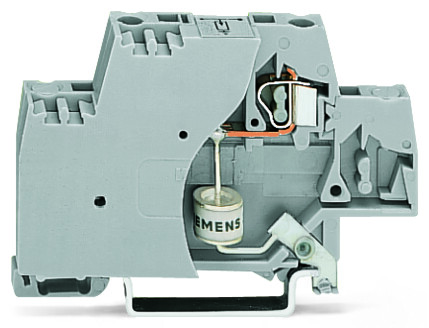

WAGO 280-503/281-580

SKU:

280-503/281-580

UPC:

MPN:

280-503/281-580

Condition:

New

capacitance:

2 pF

color:

Gray

connection points number:

2

connection technology:

CAGE CLAMP

continuous operating voltage max:

AC 180 V / DC 230 V

country of origin sales organisation germany:

DE

depth:

64 mm / 2.52 inch

design:

With end plate: with direct connection to DIN-rail

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.265 MJ

flammability class per ul94:

V0

height from upper edge of din rail:

39.5 mm / 1.555 inch

insulation material:

Polyamide (PA66)

mounting type:

DIN-35 rail

nominal discharge current 8 20 s line:

5 kA

nominal operating voltage:

AC/DC 115 V

packaging type:

Box

protection level 8 20 s:

¤ AC 650 V

rated continuous current:

20 A

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

12.316 g

width:

10 mm / 0.394 inch
