WAGO 280-582 Spacer; same profile as 4-conductor sensor terminal blocks, 3-conductor sensor terminal blocks with ground contact or appropriate actuator; terminal bloc; gray
Wago
$2.82
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 280-582 Spacer; same profile as 4-conductor sensor terminal blocks, 3-conductor sensor terminal blocks with ground contact or appropriate actuator; terminal bloc; gray
Spacer; same profile as 4-conductor sensor terminal blocks, 3-conductor sensor terminal blocks with ground contact or appropriate actuator; terminal bloc; gray.

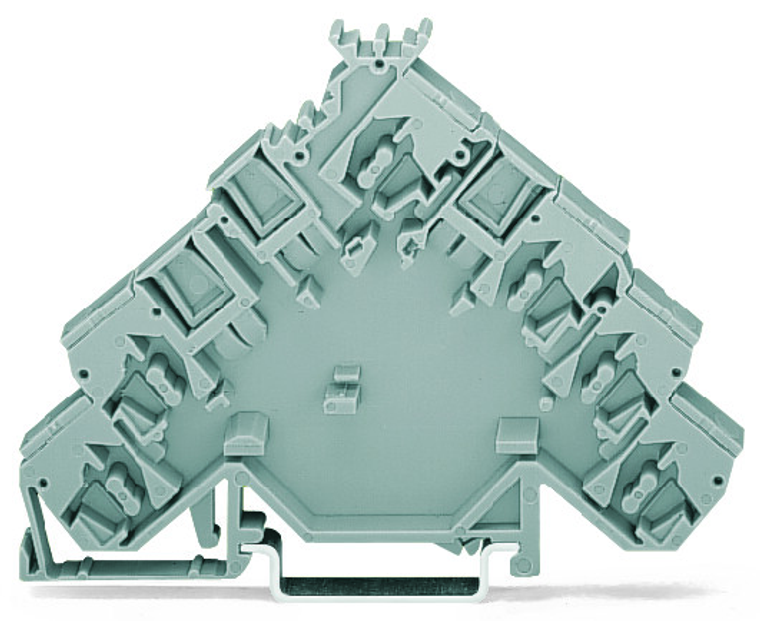

The WAGO 280 series spacer is a gray-colored component featuring CAGE CLAMP spring connections, designed for mounting on a DIN-35 rail with a width of 5mm. It is compatible with 4-conductor sensor terminal blocks and is equivalent to the model 280582.
- color:
- Gray
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 63.5 mm / 2.5 inch
- design:
- Angled
- fire load:
- 0.258 MJ
- height:
- 90.5 mm / 3.563 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- number of levels:
- 4
- packaging type:
- Box
- safety information 1:
- Spacers with the same profile clearly differentiate between sensor or actuator terminal groups, e.g., of different power supply.
- weight:
- 8.540 g
- width:
- 5 mm / 0.197 inch
