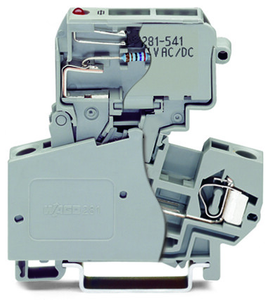

Fuse disconnect terminal block with pivoting fuse holder; for 5 x 30 mm miniature metric fuse; 15 - 30 V; with blown fuse indication by LED.
The WAGO 281 series feed-through terminal block is a gray, single-deck unit featuring a fused-disconnect lever type for 5x30mm fuses, with a blown-fuse LED indicator for 15-30Vdc. It includes a center marking slot and supports one disconnect feed-through pole for two wires (one clamp each), accommodating wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG. Rated for a current of 10A, it utilizes CAGE CLAMP spring connections and mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with an 8mm width, equivalent to model 281622281541.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- type of fuse:
- Cylindrical fuse 5 x 30 mm
- color:
- Gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 60 mm / 2.362 inch
- design:
- Angled
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.339 MJ
- flammability class per ul94:
- V0
- height:
- 60 mm / 2.362 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 800 V
- note on rated current 1:
- Leakage current in case of a blown fuse: LED 6 mA
- operation status indicator:
- 15 30 V
- packaging type:
- Box
- rated current:
- 0.416666666666667
- rated surge voltage iii 3:
- 8 kV
- ratings note:
- Electrical ratings are given by the fuse and blown fuse indication.
- ratings per:
- IEC/EN 60947-7-3
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 17.744 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Front-entry wiring
