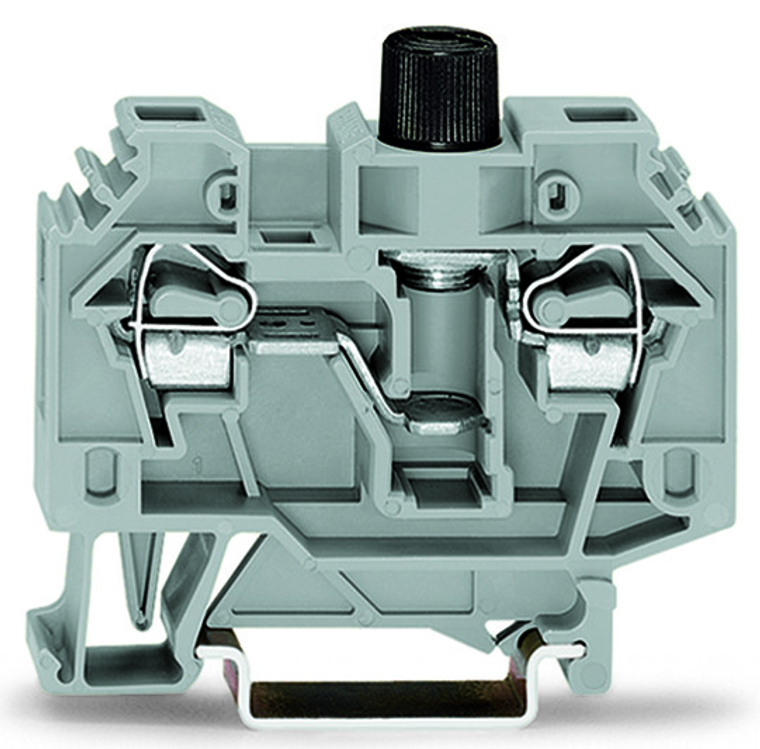

2-conductor fuse terminal block; for 5 x 20 mm miniature metric fuse; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; CAGE CLAMP; 6,00 mm²; gray.
The WAGO 282 series feed-through terminal block is a gray, single-deck unit with a fused-disconnect feature for 5x20mm fuses. It includes side marking slots and supports one disconnect feed-through pole for two wires using CAGE CLAMP spring connections. It accommodates wire sizes from 0.2mm² to 6mm² (#24AWG to #10AWG) and is rated for a current of 10A. The terminal block is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 13mm, equivalent to model 282122.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 54.5 mm / 2.146 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.2 6 mm / 24 10 AWG
- fire load:
- 0.536 MJ
- flammability class per ul94:
- V0
- height:
- 62 mm / 2.441 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 0.416666666666667
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 25.867 g
- width:
- 13 mm / 0.512 inch
- wiring direction:
- Side-entry wiring
