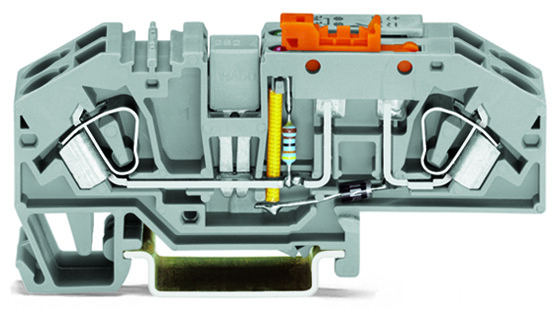

Wago 282-638

WAGO 282-638 Ground Conductor Disconnect Terminal Block with Test Option, Orange Disconnect Link, 120 V, 6 mm², CAGE CLAMP®, Gray

Wago
SKU:
282-638
Availability:
Factory stock
$67.72
Condition:
New
Current Stock:
Description
Ground conductor disconnect terminal block; with test option; with orange disconnect link; 120 V; 6 mm; CAGE CLAMPp>
Electrical Data
  • Operation status indicator: 120 V
Connection Data
  • Connection technology: CAGE CLAMP<sup></sup>
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 0.2 6 mm / 24 10 AWG
  • Fine-stranded conductor: 0.2 6 mm / 24 10 AWG
  • Strip length: 12 13 mm / 0.47 0.51 inch
  • Total number of connection points: 4
  • Total number of potentials: 4
  • Number of levels: 1
  • Type of wiring: Front-entry wiring
Geometrical Data
  • Width: 16 mm / 0.63 inch
  • Height from upper-edge of DIN-35 rail: 37 mm / 1.457 inch
  • Depth: 85 mm / 3.346 inch
Mechanical Data
  • Design: Angled
  • Type of mounting: DIN-35 rail
  • Marking level: Center marking
Material Data
  • Color: gray
  • Fire load: 0.000 MJ
  • Weight: 40.105 g
Commercial data
  • Packaging type: BOX
  • Country of origin: DE
  • GTIN: 4045454500870
  • Customs Tariff No.: 85365080900
.

The WAGO 282 series ground conductor disconnect terminal block is a versatile component featuring a single deck with a knife-disconnect, an LED indicator for 120Vdc, and a center marking slot. It includes a test point and supports one disconnect feed-through pole with four wire connections (two clamps on each side) suitable for wire sizes ranging from 0.2mm² to 6mm² or #24AWG to #10AWG. The terminal block utilizes CAGE CLAMP spring connections and is designed for DIN-35 rail mounting with a 16mm width, equivalent to model 282638.

Additional Information
actuation type:
Operating tool
color:
Gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
37 mm / 1.457 inch
design:
Angled
fine stranded conductor:
0.2 6 mm / 24 10 AWG
fire load:
0.651 MJ
flammability class per ul94:
V0
height:
85 mm / 3.346 inch
marking level:
Center marking
mounting type:
DIN-35 rail
operation status indicator:
120 V
packaging type:
Box
solid conductor:
0.2 6 mm / 24 10 AWG
strip length:
12 13 mm / 0.47 0.51 inch
weight:
40.105 g
width:
16 mm / 0.63 inch
wiring direction:
Front-entry wiring
