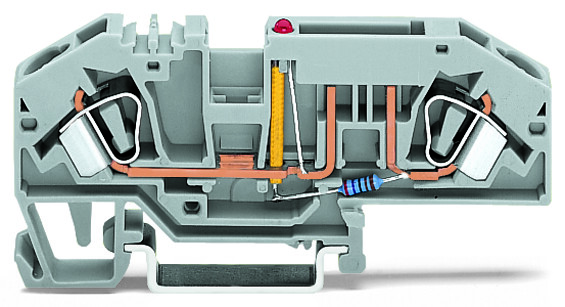

WAGO 282-698/281-449 2-conductor fuse terminal block for automotive blade-style fuses with LED blown fuse indication, 12 V, 25 A, gray
Wago
$27.58
2-conductor fuse terminal block; for automotive blade-style fuses; with test option; with blown fuse indication by LED; 12 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; CAGE CLAMP; 6,00 mm²; gray.
The WAGO 282 series feed-through terminal block features a single-deck design with a blade-style fused disconnect and a blown-fuse LED indicator for 12Vdc. It includes a center marking slot and a test point, accommodating one disconnect feed-through pole and two wires with one clamp each. Suitable for wire sizes ranging from 0.2mm² to 6mm² or #24AWG to #10AWG, it supports a rated current of 25A to 30A. The terminal block uses CAGE CLAMP spring connections and mounts on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5, with an 8mm width, equivalent to model 282698281449.
- actuation type:
- Operating tool
- type of fuse:
- Flat blade fuse 19.1 x 5.1 x 18.5 mm
- Color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 33.5 mm / 1.319 inch
- design:
- Angled
- fine stranded conductor:
- 0.2 6 mm / 24 10 AWG
- fire load:
- 0.300 MJ
- flammability class per ul94:
- V0
- height:
- 85 mm / 3.346 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 400 V
- note on rated current 1:
- LED power consumption: 4.8 mA
- operation status indicator:
- 12 V
- packaging type:
- Box
- rated current:
- 25 A
- rated current 2:
- 30 A
- rated surge voltage iii 3:
- 6 kV
- ratings note:
- Electrical ratings are given by the fuse and blown fuse indication.
- ratings note 2:
- Blade-style fuses: Observe touch-proof protection for 42 V and higher voltages!
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 17.940 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Front-entry wiring
