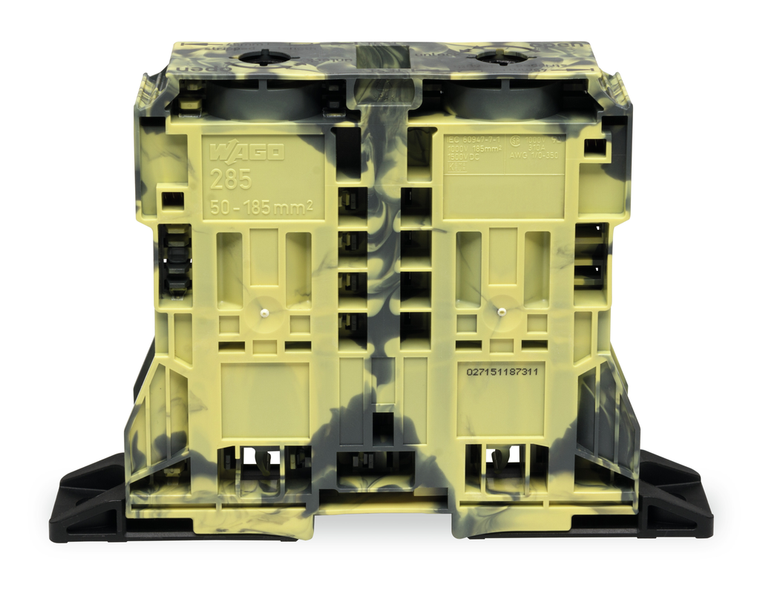

WAGO 285-1167 Pack of 4
Wago
$302.80
POWER CAGE CLAMP feedthrough terminal block; with fixing flanges; 2-conductor; 350 kcMil; 32 mm wide; dark-gray-yellow.
The WAGO 285 series feed-through terminal block features a single deck with side marking slots, designed for one feed-through pole and two wires using a clamp system. It supports a nominal cross-section of 185mm² and accommodates fine stranded or solid conductors ranging from 50mm² to 185mm² or #1/0AWG to #350kcmil. Rated for a current of 353A, it utilizes POWER CAGE-CLAMP screw connections and is suitable for flange or surface mounting. The product is equivalent to model 2851167 and comes in a dark gray-yellow color.
- actuation type:
- Operating tool
- approvals per:
- C22.2 No 158
- color:
- Dark gray-yellow
- connectable conductor materials:
- Copper
- connection technology:
- POWER CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 170 mm / 6.693 inch
- design:
- Horizontal type
- fine stranded conductor:
- 50 185 mm / 1/0 AWG 350 kcmil
- fine stranded conductor with insulated ferrule:
- 50 150 mm / 1/0 AWG 300 kcmil
- fine stranded conductor with uninsulated ferrule:
- 50 185 mm / 1/0 AWG 350 kcmil
- fire load:
- 0.576 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 123 mm / 4.843 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- Mounting flange
- nominal cross section:
- 185 mm
- nominal voltage iii 3:
- 1000 V
- packaging type:
- Box
- rated current:
- 353 A
- rated current csa use group b:
- 310 A
- rated current csa use group d:
- 310 A
- rated current ul use group b:
- 310 A
- rated current ul use group c:
- 310 A
- rated surge voltage iii 3:
- 12 kV
- rated surge voltage iii 3 2:
- 12 kV
- rated voltage csa use group b:
- 1000 V
- rated voltage csa use group c:
- 1000 V
- rated voltage iii 3 2:
- 1500 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 50 185 mm / 1/0 AWG 350 kcmil
- stranded conductor:
- 50 185 mm / 1/0 AWG 350 kcmil
- strip length:
- 45 47 mm / 1.77 1.85 inch
- weight:
- 562.000 g
- width:
- 32 mm / 1.26 inch
- wiring direction:
- Side-entry wiring
