Wago

WAGO 285-144 Pack of 5

(No reviews yet) Write a Review
SKU:
285-144
MPN:
285-144
Condition:
New
actuation type:
Operating tool
approvals per:
UL 1059
color:
Blue
connectable conductor materials:
Copper
connection technology:
POWER CAGE CLAMP
country of origin sales organisation germany:
PL
depth:
130 mm / 5.118 inch
design:
Horizontal type
fine stranded conductor:
10 70 mm / 8 2/0 AWG
fine stranded conductor with insulated ferrule:
10 50 mm / 8 1/0 AWG
fine stranded conductor with uninsulated ferrule:
10 50 mm / 8 1/0 AWG
fire load:
1.962 MJ
flammability class per ul94:
V0
height from the surface:
94 mm / 3.7 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Side marking
mounting type:
Mounting flange
nominal voltage iii 3:
1000 V
packaging type:
Box
rated current:
150 A
rated current csa use group b:
150 A
rated current csa use group d:
150 A
rated current ul use group b:
150 A
rated current ul use group c:
150 A
rated surge voltage iii 3:
8 kV
rated voltage csa use group b:
600 V
rated voltage csa use group c:
600 V
rated voltage ul use group b:
600 V
rated voltage ul use group c:
600 V
ratings per:
IEC/EN 60947-7-1
solid conductor:
10 50 mm / 8 1/0 AWG
stranded conductor:
10 70 mm / 8 2/0 AWG
strip length:
30 mm / 1.18 inch
weight:
164.490 g
width:
20 mm / 0.787 inch
wiring direction:
Side-entry wiring
$125.65

Description

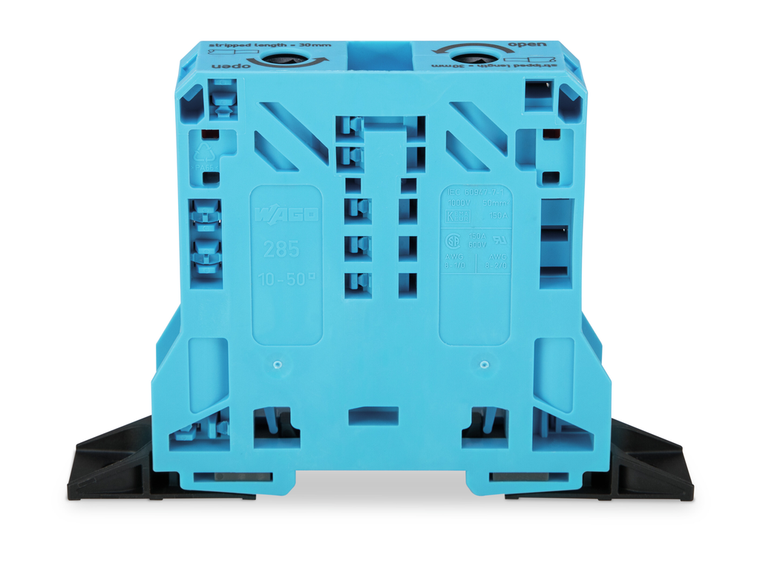

2-conductor through terminal block50 mm, blue.

The WAGO 285 series neutral-through terminal block features a single deck with side marking slots, designed for neutral-through pole (N) connections with two wires (1 clamp + 1 clamp). It supports a nominal cross-section of 50mm² and accommodates wire sizes from 10mm² to 70mm² or #8AWG to #2/0AWG. Rated for a current of 150A, it utilizes POWER CAGE-CLAMP screw connections and can be flange or surface mounted. This model is equivalent to 285144 and is blue in color.
