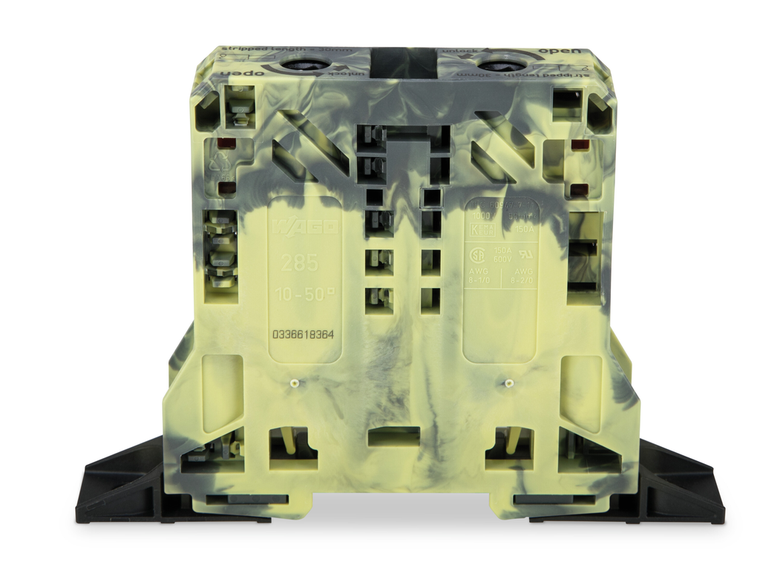

WAGO 285-147 Pack of 5

(No reviews yet) Write a Review

Write a Review

WAGO 285-147 Pack of 5

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

285-147

UPC:

MPN:

Condition:

New

actuation type:

Operating tool

approvals per:

C22.2 No 158

color:

Dark gray-yellow

connectable conductor materials:

Copper

connection technology:

POWER CAGE CLAMP

country of origin sales organisation germany:

PL

depth:

130 mm / 5.118 inch

design:

Horizontal type

fine stranded conductor:

10 70 mm / 8 2/0 AWG

fine stranded conductor with insulated ferrule:

10 50 mm / 8 1/0 AWG

fine stranded conductor with uninsulated ferrule:

10 50 mm / 8 1/0 AWG

fire load:

1.964 MJ

flammability class per ul94:

V0

height from the surface:

94 mm / 3.7 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Side marking

mounting type:

Mounting flange

nominal voltage iii 3:

1000 V

packaging type:

Box

rated current:

150 A

rated current csa use group b:

150 A

rated current csa use group d:

150 A

rated current ul use group b:

150 A

rated current ul use group c:

150 A

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60947-7-1

solid conductor:

10 50 mm / 8 1/0 AWG

stranded conductor:

10 70 mm / 8 2/0 AWG

strip length:

30 mm / 1.18 inch

weight:

164.490 g

width:

20 mm / 0.787 inch

wiring direction:

Side-entry wiring
