WAGO 285-188
- SKU:
- 285-188
- Condition:
- New
Description

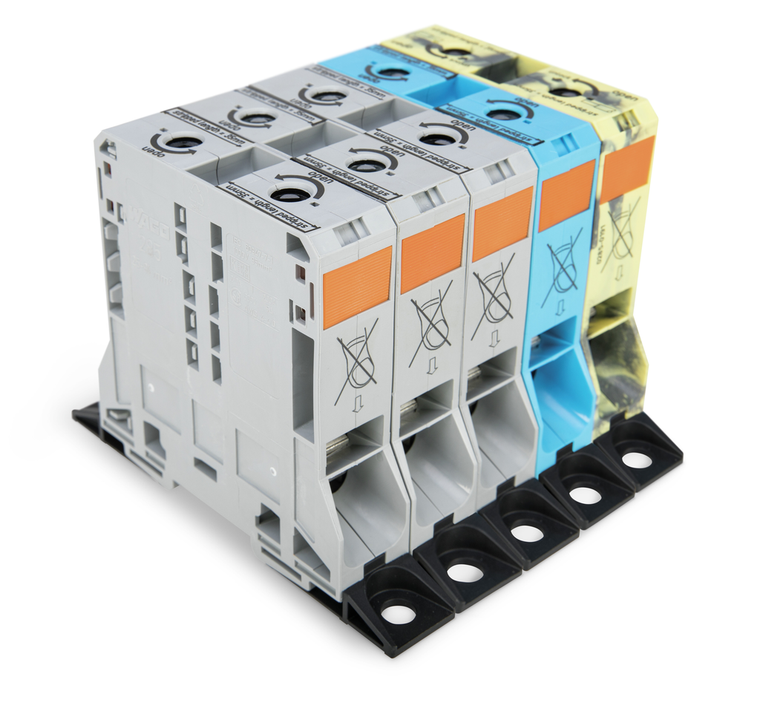

POWER CAGE CLAMP feedthrough terminal block (Three Phase Set); with fixing flanges; 2-conductor; 4/0 AWG; 125 mm wide (25 mm wide each); multicolored
View AllClose
Additional Information
actuation type: |
Operating tool |
approvals per: |
UL 1059 |
color: |
Multicoloured |
connectable conductor materials: |
Copper |
connection technology: |
POWER CAGE CLAMP |
country of origin sales organisation germany: |
PL |
depth: |
145 mm / 5.709 inch |
design: |
Horizontal type |
fine stranded conductor: |
25 95 mm / 4 4/0 AWG |
fine stranded conductor with insulated ferrule: |
25 95 mm / 4 4/0 AWG |
fine stranded conductor with uninsulated ferrule: |
25 95 mm / 4 4/0 AWG |
fire load: |
10.086 MJ |
flammability class per ul94: |
V0 |
height from the surface: |
108 mm / 4.252 inch |
insulation material: |
Polyamide (PA66) |
marking level: |
Side marking |
mounting type: |
Mounting flange |
nominal voltage iii 3: |
1000 V |
packaging type: |
Box |
rated current csa use group b: |
210 A |
rated current csa use group d: |
210 A |
rated current ul use group b: |
200 A |
rated current ul use group c: |
200 A |
rated surge voltage iii 3: |
8 kV |
rated voltage csa use group c: |
1000 V |
rated voltage ul use group b: |
600 V |
rated voltage ul use group c: |
600 V |
ratings per: |
IEC/EN 60947-7-1 |
solid conductor: |
25 95 mm / 4 4/0 AWG |
stranded conductor: |
25 95 mm / 4 4/0 AWG |
strip length: |
35 mm / 1.38 inch |
weight: |
1350.255 g |
width: |
125 mm / 4.921 inch |
wiring direction: |
Side-entry wiring |
