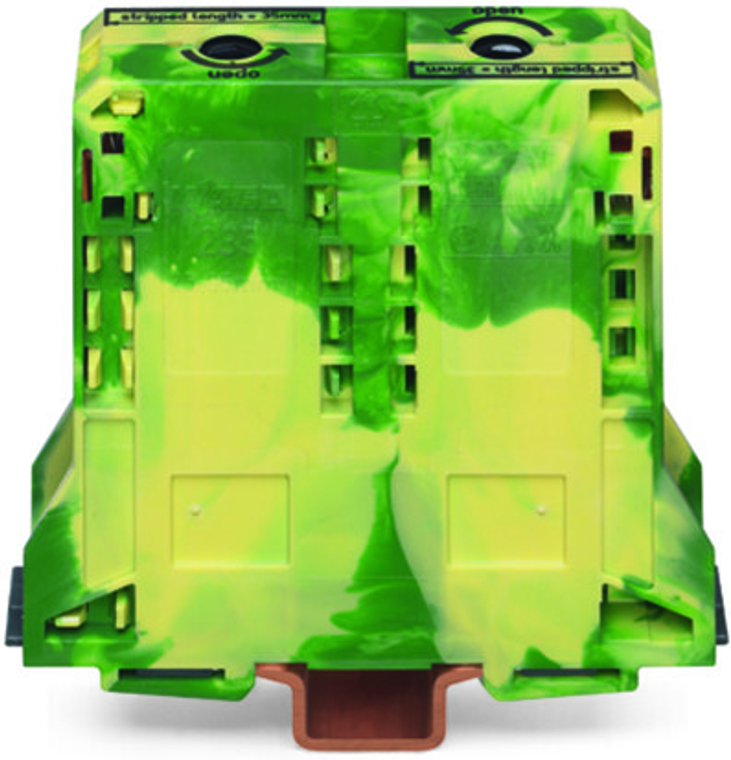

POWER CAGE CLAMP ground terminal block; suitable for Ex e II applications; DIN 35 x 15 rail mount; 2-conductor; 4/0 AWG; 25 mm wide; green-yellow.
The WAGO 285 series ground/earthing terminal block is designed for Ex e II applications and features a single deck with side marking slots. It is green-yellow in color and supports one grounding/protective-earth connection for two wires using a clamp system. The terminal block accommodates a nominal cross-section of 95mm² and is suitable for wire sizes ranging from 35mm² to 70mm² or #2AWG to #2/0AWG. It utilizes POWER CAGE-CLAMP screw connections and is mounted on a DIN-35 rail with dimensions of 35 x 15mm and a width of 25mm. This product is equivalent to model number 285197999950.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- POWER CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 101 mm / 3.976 inch
- design:
- Horizontal type
- fine stranded conductor:
- 35 70 mm / 2 2/0 AWG
- fine stranded conductor with insulated ferrule:
- 25 95 mm / 4 4/0 AWG
- fine stranded conductor with uninsulated ferrule:
- 25 95 mm / 4 4/0 AWG
- fire load:
- 0.686 MJ
- flammability class per ul94:
- V0
- height:
- 107 mm / 4.213 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- safety information 1:
- Only on DIN 35 x 15 rail: 2.3 mm thick, copper
- solid conductor:
- 35 70 mm / 2 2/0 AWG
- stranded conductor:
- 25 95 mm / 4 4/0 AWG
- strip length:
- 35 mm / 1.38 inch
- weight:
- 309.278 g
- width:
- 25 mm / 0.984 inch
- wiring direction:
- Side-entry wiring
