Wago

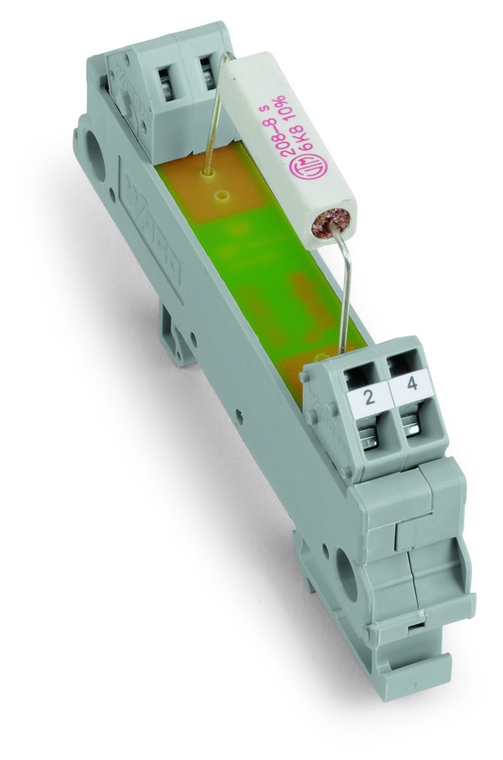

WAGO 289-128/002-000

SKU:

289-128/002-000

UPC:

MPN:

289-128/002-000

Condition:

New

component p70 power dissipation:

5 W

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

34 mm / 1.339 inch

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.310 MJ

height:

85 mm / 3.346 inch

housing design:

Mounting carrier

mounting type:

DIN-35 rail

note:

Other resistors are available upon request!

note conductor cross section:

12 AWG: THHN, THWN

note on protection type:

Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see Accessories) or a similar cover. The installation guidelines must be observ

packaging type:

Box

protection type:

IP00*

resistor:

4K7

safety information 1:

Depending on operating conditions, the components' temperature may exceed the limit temperature for accessible parts.

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

5 6 mm / 0.2 0.24 inch

surrounding air temperature operation:

-20 70 C (Derating must be observed)

surrounding air temperature storage:

-40 70 C

temperature coefficient:

50 ppm (20 C)

tolerance:

10 %

wago connector:

WAGO 236 Series

weight:

18.900 g

width:

13 mm / 0.512 inch
