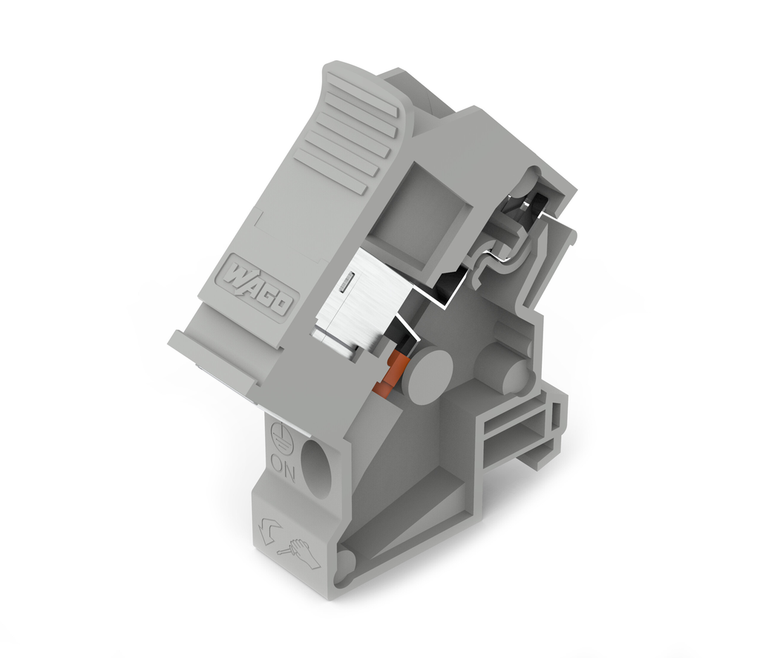

WAGO 289-197

(No reviews yet) Write a Review

Write a Review

×

WAGO 289-197

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

289-197

Condition:

New

connection cable:

Cat. 6A (min.)

connection technology 2:

IDC

connection type 1:

System

connection type 2:

System

contact material connector:

CuSn

contact plating connector:

Au over Ni

contact resistance max:

5 m

country of origin sales organisation germany:

PL

depth from upper edge of din rail:

59 mm / 2.323 inch

fire load:

0.000 MJ

height:

90 mm / 3.543 inch

material carrier rail adapter:

PC-GF10

material plug in module:

Zinc die-cast

mating cycles:

750

mounting type:

DIN-35 rail

packaging type:

Bag

pluggable connectors:

RJ-45 (shielded)

pole no:

8

pole number 1:

8

pole number 2:

8

protection type:

IP20

relative humidity:

¤ 95% (non-condensing)

solid conductor 2:

0.4 0.65 mm / 26 22 AWG

specialty functions:

With shield connection

stranded conductor 2:

0.4 0.65 mm / 26/7 22/7 AWG

strip length 2:

4.5 9.6 mm / 0.18 0.38 inch

surrounding air temperature operation:

-10 60 C

surrounding air temperature storage:

-40 70 C

weight:

39.000 g

width:

18 mm / 0.709 inch
