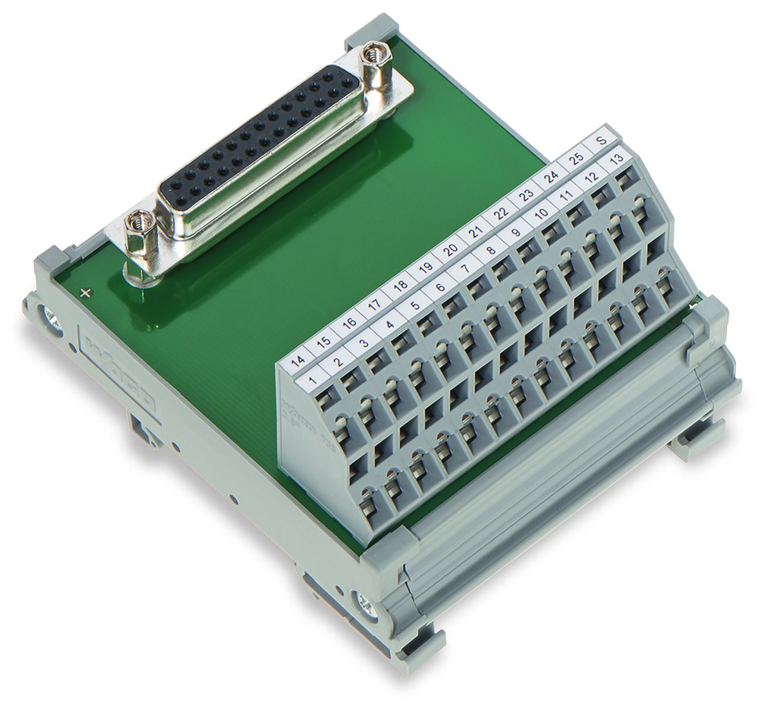

Interface module; with solder pin; Female connector; 9-pole; Double-deck PCB terminal blocks; in mounting carrier; with shield connection; 2,50 mm².
The WAGO 289 series interface module features a shielded connection in a mounting carrier, with a 9-pin D-sub female connector for system connections and a double-deck spring CAGE CLAMP for 10-pin field connections accommodating 0.08 to 2.5mm² cables. It supports a rated current of 2A, is designed for DIN-35 rail mounting with a 33mm width, and has an IP20 protection rating. The module operates in ambient temperatures ranging from -20°C to +50°C and is equivalent to model 289650.
- connection technology 2:
- CAGE CLAMP
- connection type 1:
- System
- connection type 2:
- Field
- contact material connector:
- Au over Ni
- contact resistance max:
- 30 m
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 48 mm / 1.89 inch
- design 2:
- PCB terminal blocks (double-deck)
- fine stranded conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.636 MJ
- height:
- 85 mm / 3.346 inch
- housing design:
- Mounting carrier
- mating direction:
- Vertical
- mounting type:
- DIN-35 rail
- nominal current:
- 0.0833333333333333
- note conductor cross section:
- 12 AWG: THHN, THWN
- operating altitude max:
- 2000 m
- operating voltage:
- ¤ AC/DC 125 V
- packaging type:
- Box
- performance level:
- 2 / 200 mating cycles
- pluggable connectors:
- D-sub female connector
- pole no:
- 9
- pole number 2:
- 10
- pollution degree:
- 2
- protection type:
- IP20
- rated surge voltage:
- 0.8 kV
- rated voltage:
- 125 V
- relative humidity:
- ¤ 85% (non-condensing)
- solid conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- specialty functions:
- With shield connection
- standards specifications:
- EN 61010-2-201
- strain relief:
- UNC 4-40 stud bolt
- strip length 2:
- 5 6 mm / 0.2 0.24 inch
- surrounding air temperature operation:
- -20 50 C
- surrounding air temperature storage:
- -40 70 C
- wago connector 2:
- WAGO 736 Series
- weight:
- 4.800 g
- width:
- 33 mm / 1.299 inch
