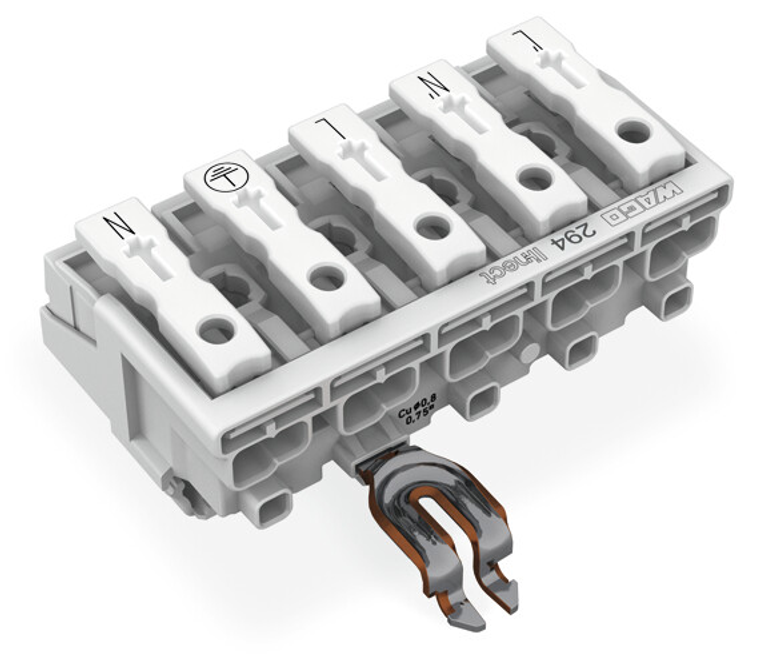

WAGO 294-8315 lighting connector
Wago
$3.62
Lighting connector; push-button, external; for Linect; with angled snap-in ground contact; L3-L2-L1-PE-N; 5-pole; Cod. A; Lighting side: for solid conductors; Inst. side: for all conductor types; max. 2.5 mm²; Surrounding air temperature: max 85°C (T85); 2,50 mm²; white.
The WAGO component equivalent to 2948315 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and ease of installation, making it a preferred choice for professionals in the industry. It is compatible with a range of systems and can be used in different configurations to meet specific requirements.
- actuation type:
- Push-button
- actuation type 2:
- Push-in
- actuation type 3:
- Push-in
- actuation type 4:
- Push-in
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- Color:
- White
- connection technology:
- Push-in CAGE CLAMP«
- connection technology 2:
- PUSH WIRE«
- connection technology 3:
- PUSH WIRE«
- connection technology 4:
- PUSH WIRE«
- connection type 1:
- External 1
- connection type 2:
- Internal 2
- connection type 3:
- Internal 3
- connection type 4:
- Internal 4
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 27.3 mm / 1.075 inch
- fine stranded conductor:
- 0.5 ª 2.5 mm / 18 ª 14 AWG
- fine stranded conductor with ferrule push in termination:
- 0.5 mm / 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 ª 1.5 mm / 18 ª 16 AWG
- fine stranded conductor with insulated ferrule 2:
- 0.5 ª 1 mm / 18 ª 14 AWG
- fine stranded conductor with insulated ferrule 3:
- 0.5 ª 0.75 mm / 18 AWG
- fine stranded conductor with uninsulated ferrule:
- 0.5 ª 1.5 mm / 18 ª 16 AWG
- fine stranded conductor with uninsulated ferrule 2:
- 0.5 ª 1.5 mm / 18 ª 16 AWG
- fine stranded conductor with uninsulated ferrule 3:
- 0.5 ª 1 mm / 18 ª 14 AWG
- fire load:
- 0.330 MJ
- flammability class per ul94:
- V0
- height:
- 22.4 mm / 0.882 inch
- height from the surface:
- 17 mm / 0.669 inch
- insulation material:
- Polycarbonate (PC)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- marking:
- L3 L2 L1 N
- material group:
- IIIa
- nominal voltage ii 2:
- 500 V
- number of connection points:
- 2
- number of connection points 2:
- 1
- number of connection points 3:
- 1
- number of connection points 4:
- 1
- packaging type:
- Bag
- pin spacing:
- 10 mm / 0.394 inch
- pole no:
- 5
- rated current:
- 24 A
- rated current 2:
- 24 A
- rated current 3:
- 16 A
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage ii 2 2:
- 4 kV
- rated surge voltage ii 2 3:
- 4 kV
- rated voltage ii 2 2:
- 500 V
- rated voltage ii 2 3:
- 500 V
- ratings note:
- Connection points
- ratings note 2:
- Connection points
- ratings note 3:
- Linect« plug-in connection
- ratings per:
- IEC/EN 60998-1 || IEC/EN 60998-2-2
- ratings per 3:
- IEC/EN 61984
- solid conductor:
- 0.5 ª 2.5 mm / 18 ª 12 AWG
- solid conductor 2:
- 0.5 ª 2.5 mm / 18 ª 14 AWG
- solid conductor 3:
- 0.5 ª 1.5 mm / 18 ª 16 AWG
- solid conductor 4:
- 0.5 ª 0.75 mm / 18 AWG
- solid conductor push in termination:
- 0.5 ª 2.5 mm / 18 ª 12 AWG
- stranded conductor:
- 0.5 ª 2.5 mm / 18 ª 14 AWG
- strip length:
- 8 ª 9 mm / 0.31 ª 0.35 inch
- strip length 2:
- 8 ª 9 mm / 0.31 ª 0.35 inch
- strip length 3:
- 8 ª 9 mm / 0.31 ª 0.35 inch
- strip length 4:
- 8 ª 9 mm / 0.31 ª 0.35 inch
- t marking:
- T85
- technology:
- Linect
- temperature stability:
- 120 C
- weight:
- 17.070 g
- width:
- 50 mm / 1.969 inch
