WAGO 704-2003

(No reviews yet) Write a Review
SKU:
704-2003
MPN:
704-2003
Condition:
New
circuit type:
3-wire connection
compatible plc i o card types:
6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0 || 6ES7 322-1BF01-0AA0 || 6ES7 322-8BF00-0AB0 || 6ES7 323-1BH01-0AA0 || 6ES7 327-1BH00-0AB0 || 6ES7 326-2BF01-0AB0
compatible plc modules:
Siemens S7-300 || Siemens S7-400 || Siemens S7-1500 || GE Fanuc 9030 || Schneider Modicon TM3 || Schneider TSX || Schneider Modicon M340 || Schneider Modicon Quantum || Rockwell Compact Logix || WAGO I/O System 753 || WAGO I/O System 750 || Omron CJ1
connection type 1:
System
connection type 2:
Field
connection type 3:
Supply
country of origin sales organisation germany:
FR
depth from upper edge of din rail:
63 mm / 2.48 inch
design 2:
PCB terminal blocks (triple-deck)
design 3:
PCB terminal blocks (double-deck)
fine stranded conductor 2:
0.08 2.5 mm / 28 12 AWG
fine stranded conductor 3:
0.08 2.5 mm / 28 12 AWG
fire load:
0.000 MJ
height:
85 mm / 3.346 inch
inputs outputs:
8-channel digital input or output
internal fuse:
0.0833333333333333
limiting continuous current:
0.0416666666666667
mating direction:
Vertical
mounting type:
DIN-35 rail
nominal operating voltage:
DC 24 V
note conductor cross section:
12 AWG: THHN, THWN
operating voltage range:
10 %
packaging type:
Box
pluggable connectors:
DIN 41651 male connector
pole number 1:
10
pole number 2:
24
pole number 3:
6
pollution degree:
2
power consumption status indication:
5 mA
rated surge voltage:
0.8 kV
rated voltage:
50 V
relative humidity:
¤ 85% (non-condensing)
solid conductor 2:
0.08 2.5 mm / 28 12 AWG
solid conductor 3:
0.08 2.5 mm / 28 12 AWG
status indicator:
Green LED (channel) || Yellow LED (power supply)
strip length 2:
5 6 mm / 0.2 0.24 inch
strip length 3:
5 6 mm / 0.2 0.24 inch
surrounding air temperature operation:
-20 50 C
surrounding air temperature storage:
-40 70 C
total current:
0.0833333333333333
wago connector 2:
WAGO 737 Series
wago connector 3:
WAGO 736 Series
weight:
0.000 g
width:
56 mm / 2.205 inch
  • Wago 704-2003
  • Wago 704-2003
$251.20

Description

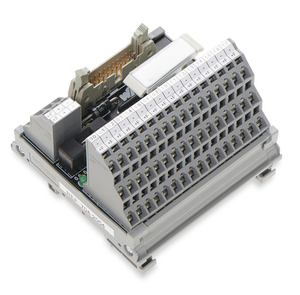

Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 10-pole; 8-channel digital input or output; 3-wire connection; in mounting carrier.

The WAGO 704 series digital input/output interface module is designed for mounting on a DIN-35 rail and features a 10-pole configuration with a supply voltage range of 21.6-26.4Vdc (24Vdc nominal). It includes a DIN 41651 10-pin male connector for system connections and a triple-deck spring CAGE CLAMP 24-pin connector for field connections, accommodating cables from 0.08 to 2.5mm². The module has a width of 56mm and is rated for operation in ambient temperatures ranging from -20°C to +50°C. It is equivalent to the model 7042003.
