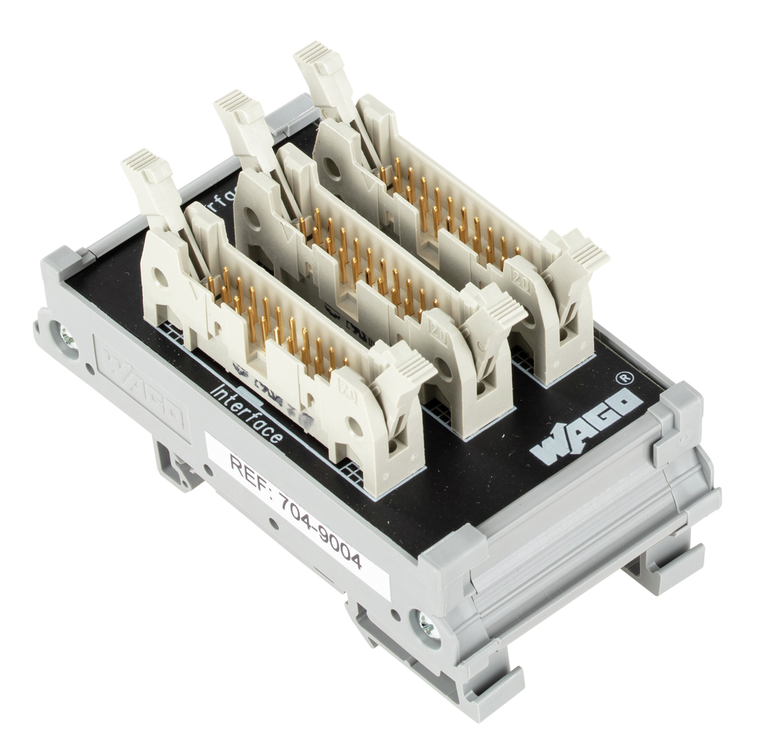

WAGO 704-9004 Interface Module for System Wiring, 20-Pole Pluggable Connector
Wago
$229.70
Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; in mounting carrier.
The WAGO 704 series digital inputs interface module is designed for mounting on a DIN-35 rail with a 45mm width. It features a 20-pole configuration with a DIN 41651 20-pin male connector and is rated for ambient temperatures ranging from -20°C to +50°C. This module is equivalent to the model 7049004.
- connection type 1:
- System
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 45 mm / 1.771 inch
- fire load:
- 0.723 MJ
- height:
- 85 mm / 3.345 inch
- inputs outputs:
- 16-channel digital input
- limiting continuous current:
- 0.0416666666666667
- mounting type:
- DIN-35 rail
- nominal operating voltage:
- DC 24 V
- packaging type:
- Box
- pluggable connectors:
- DIN 41651 male connector
- pole number 1:
- 20
- pole number 2:
- 20
- pole number 3:
- 20
- pollution degree:
- 2
- rated surge voltage:
- 0.8 kV
- rated voltage:
- 50 V
- relative humidity:
- ¤ 85% (non-condensing)
- surrounding air temperature operation:
- -20 50 C
- surrounding air temperature storage:
- -40 70 C
- weight:
- 53.468 g
- width:
- 45 mm / 1.771 inch
