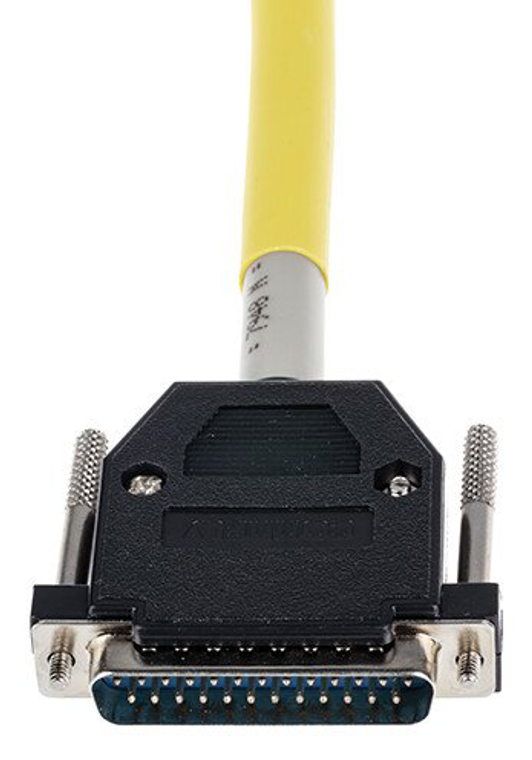

WAGO 706-100/537-100 37-Pole Sub-Min-D Sensor-Actuator Patch Cord, 2m
Wago
$226.70
Cable, 37-pole SUB-D.
The WAGO component equivalent to 706100537100 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and maintenance-free connections. This component is typically used in various industrial applications, including machinery, building automation, and process control, to enhance system performance and reliability.
- cable length:
- 1 m
- cable type:
- LiYCY

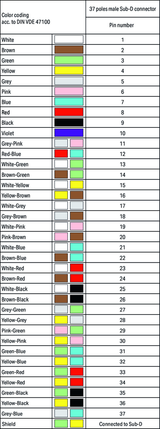

- color code:
- Per DIN VDE 47100
- connection type 1:
- System
- connection type 2:
- Open-ended
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0833333333333333
- fire load:
- 0.000 MJ
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 1 A.
- operating voltage:
- «± AC/DC 35 V
- packaging type:
- Box
- pluggable connectors:
- D-sub male connector
- pole no:
- 37
- pole number 1:
- 37
- surrounding air temperature operation:
- -20 ª 50 C
- weight:
- 1.111 g
- wire cross section:
- 0.25 mm
