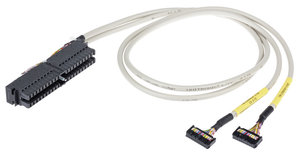

WAGO 706-2300/301-300

SKU:

706-2300/301-300

UPC:

MPN:

Condition:

New

cable length:

3 m

cable type:

LiYY

color code:

Per DIN VDE 47100

compatible plc i o card types:

6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 313-6BE01-0AB0 || 6ES7 313-6BF03-0AB0 || 6ES7 313-6CE01-0AB0 || 6ES7 313-6CF03-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0 || 6ES7 321-1BP00-0AA0

compatible plc modules:

Siemens S7-300

connection type 1:

System

connection type 2:

System

connection type 3:

System

connector 2:

Pluggable connector per DIN 41651: Female connector

connector 3:

Siemens 6ES7-392-1BM00-0AA0

country of origin sales organisation germany:

FR

current per wire max:

0.0416666666666667

fire load:

0.000 MJ

inputs outputs:

2 x 16 digital inputs or outputs

note:

When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.

operating voltage:

¤ AC/DC 35 V

pluggable connectors:

Pluggable connector per DIN 41651: Female connector

pole number 2:

20

pole number 3:

20

surrounding air temperature operation:

-20 50 C

weight:

561.000 g

wire cross section:

0.14 mm
