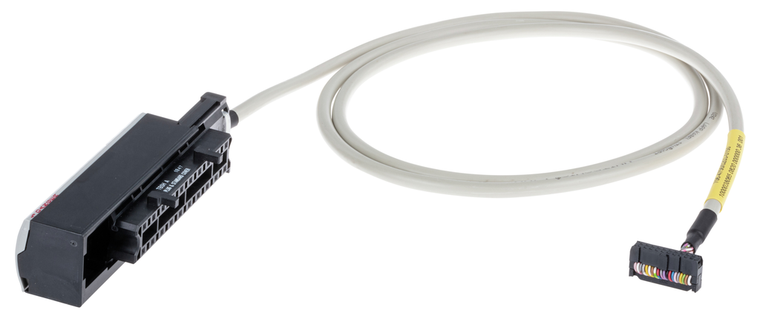

WAGO 706-4756/408-200 system cable for Rockwell Control Logix, 2m length, 25 poles
Wago
$627.00
System cable; for Rockwell Control Logix; 6 analog inputs (current); Length: 2 m; Conductor cross-section: 0.25mm.
The WAGO component equivalent to 7064756408200 is a specific part or product within the WAGO catalog, likely used in electrical or automation applications. This component is identified by its unique code, which helps in ensuring compatibility and proper functionality within systems that require precise and reliable components.
- cable length:
- 2 m
- cable type:
- LiYCY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 1756 - IF6I
- compatible plc modules:
- Rockwell Control Logix
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- Allen Bradley 1756-TBS6H/A
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0833333333333333
- fire load:
- 0.000 MJ
- inputs outputs:
- 6 analog inputs: current
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 1 A.
- operating voltage:
- ¤ AC/DC 35 V
- packaging type:
- Bag
- pluggable connectors:
- D-sub female connector
- pole number 1:
- 25
- pole number 2:
- 20
- surrounding air temperature operation:
- -20 50 C
- weight:
- 538.000 g
- wire cross section:
- 0.25 mm
