Wago

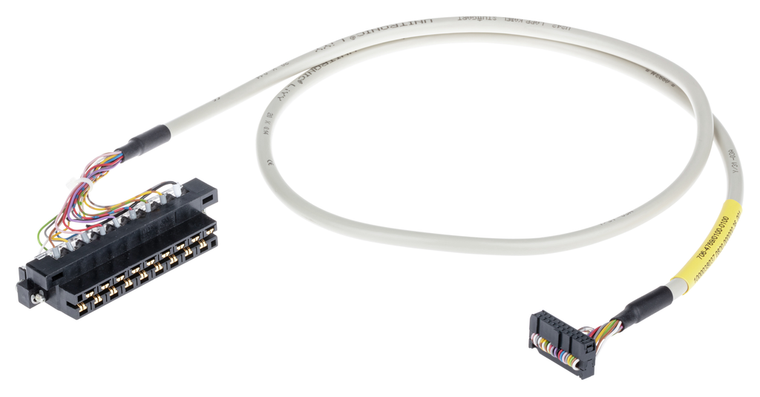

Wago 706-4769/200-300 S-Cable, ROCKWELL COMPACT LOGIX T12SHT

SKU:

706-4769/200-300

UPC:

MPN:

706-4769/200-300

Condition:

New

cable length:

3 m

cable type:

LiYY

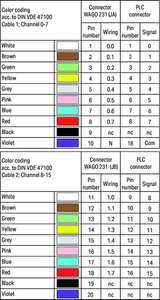

color code:

Per DIN VDE 47100

compatible plc i o card types:

1769 - OA16 || 1769 - OW16

compatible plc modules:

Rockwell Compact Logix

connection type 1:

System

connection type 2:

System

connection type 3:

System

connector 2:

WAGO 231 Series

connector 3:

Rockwell-RTBN18

current per wire max:

0.75 A

fire load:

0.000 MJ

inputs outputs:

12 digital outputs: for higher voltages

note:

If less than 3 channels used at the same time, the maximum current per wire 2 A and up to 5 A (amb. T 30 C) or 3.5 A (amb. T 50 C) on the power supply pins N/L. If more than 3 channels used at the same time, the maximum current per wire 0.75 A an

operating voltage:

ëñ AC/DC 250 V

packaging type:

Box

pluggable connectors:

WAGO 231 Series

pole number 1:

10

pole number 2:

10

pole number 3:

18

surrounding air temperature operation:

-20 Ǫ 50 C

weight:

1.111 g

wire cross section:

0.34 mm
