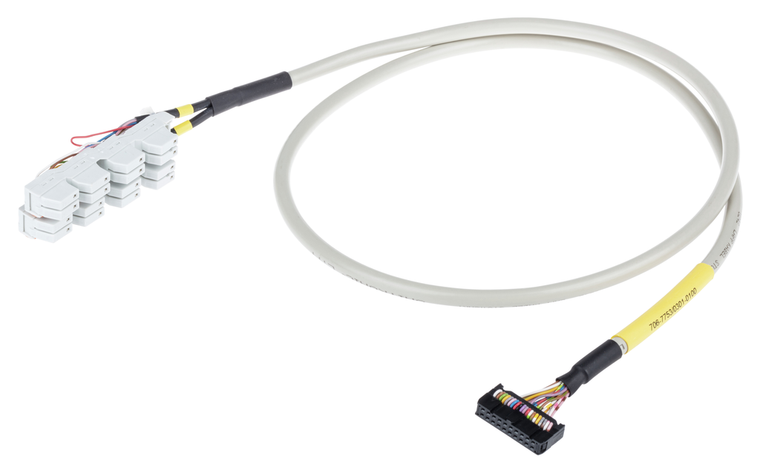

System cable; for WAGO-I/O-SYSTEM, 753 Series; 2 x 16 digital inputs or outputs; Length: 1 m; Conductor cross-section: 0.14 mm².
The WAGO component equivalent to 7067753301100 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring seamless integration and performance within various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- cable length:
- 1 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 753-430 (x2) || 753-431 (x2) || 753-530 (x2)
- compatible plc modules:
- WAGO I/O System 753
- connection type 1:
- System
- connection type 2:
- System
- connection type 3:
- System
- connector 2:
- WAGO 753-110
- connector 3:
- WAGO 753-110
- country of origin sales organisation germany:
- QU
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- inputs outputs:
- 2 x 16 digital inputs or outputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
- operating voltage:
- ¤ AC/DC 35 V
- pluggable connectors:
- Pluggable connector per DIN 41651: Female connector
- pole number 1:
- 8
- pole number 2:
- 8
- pole number 3:
- 20
- surrounding air temperature operation:
- -20 50 C
- weight:
- 115.000 g
- wire cross section:
- 0.14 mm
