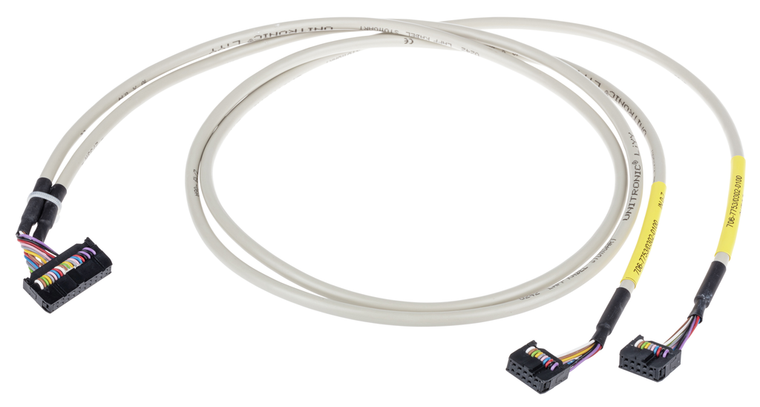

WAGO 706-7753/302-300 system cable for WAGO-I/O-SYSTEM 753 series, 3m length
Wago
$103.50
S-Cable WAGO 753 T8E8S.
The WAGO component equivalent to 7067753302300 is a specific part or product within the WAGO range, likely used for electrical or automation applications. This component is designed to meet the same specifications and performance criteria as the referenced part number, ensuring compatibility and functionality in relevant systems.
- cable length:
- 3 m
- cable type:
- LiYY
- color code:
- Per DIN VDE 47100
- compatible plc i o card types:
- 750-1502
- compatible plc modules:
- WAGO I/O System 753
- connection type 1:
- System
- connection type 2:
- System
- connection type 3:
- System
- connector 2:
- Pluggable connector per DIN 41651: Female connector
- connector 3:
- DIN 41651 connector: female connector
- country of origin sales organisation germany:
- FR
- current per wire max:
- 0.0416666666666667
- fire load:
- 0.000 MJ
- inputs outputs:
- 8 digital inputs and 8 digital outputs
- note:
- When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.
- operating voltage:
- ¤ AC/DC 35 V
- pluggable connectors:
- Pluggable connector per DIN 41651: Female connector
- pole number 1:
- 10
- pole number 2:
- 10
- pole number 3:
- 20
- surrounding air temperature operation:
- -20 50 C
- weight:
- 256.000 g
- wire cross section:
- 0.14 mm
