Description
Matrix patchboard; Marking 1-80; Colors of modules: gray/white; Numbering of modules on sides 1 and 2 arranged vertically and horizontally; 80-pole
View AllClose
Electrical Data
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 10 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection type (1): Side 1
- Connection technology: CAGE CLAMP<sup></sup>
- Number of connection points (connection type): 3
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 1.5 mm / 28 16 AWG
- Fine-stranded conductor: 0.08 1.5 mm / 28 16 AWG
- Strip length: 8 10 mm / 0.31 0.39 inch
- No. of poles: 80
- Connection type (2): Side 2
- Number of connection points: 3
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 107.9 mm / 4.248 inch
- Height: 132 mm / 5.197 inch
- Depth: 36.5 mm / 1.437 inch
Mechanical Data
- Marking: 1 80
Material Data
- Color: dark gray
- Module color: gray/white
- Fire load: 6.689 MJ
- Weight: 420.750 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918455626
- Customs Tariff No.: 85369010000

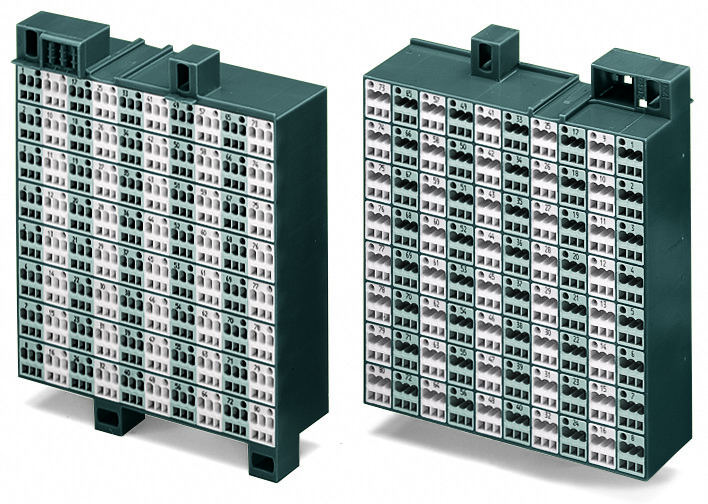

The WAGO 726 series marked matrix patchboard is a gray and white module with 80 feed-through poles, organized in 10 columns and 8 points, each accommodating 3 wires, totaling 240 wires or clamps. It supports wire sizes from 0.08mm² to 1.5mm² or #28AWG to #16AWG, with a rated current of 10A. The patchboard features CAGE CLAMP spring connections and is designed for surface mounting, equivalent to model 726721.
