Wago

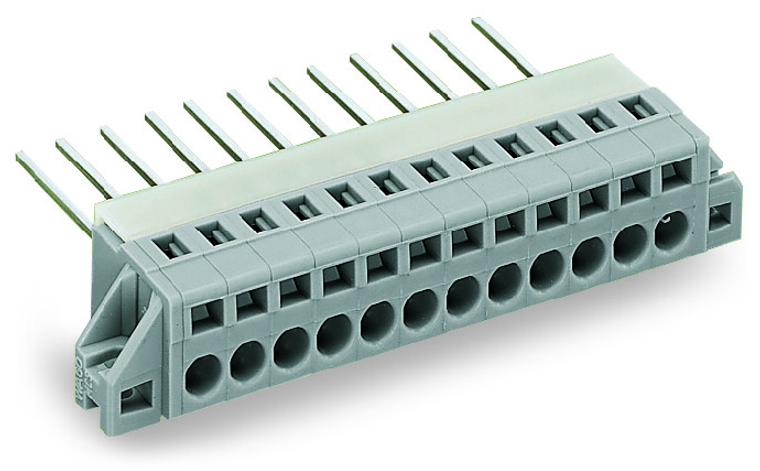

WAGO 731-132

SKU:

731-132

UPC:

MPN:

731-132

Condition:

New

actuation type:

Operating tool

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

connection technology:

CAGE CLAMP

connection technology 2:

Wire-wrap pin

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

DE

depth:

15.5 mm / 0.61 inch

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fine stranded conductor with insulated ferrule:

0.25 1.5 mm

fine stranded conductor with uninsulated ferrule:

0.25 2.5 mm

fire load:

0.070 MJ

flammability class per ul94:

V0

height:

14.3 mm / 0.563 inch

housing sheet thickness:

1.5 1.5 mm / 0.059 0.059 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

mounting type:

Mounting flange || Feed-through mounting || Panel mounting

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

packaging type:

Box

pin spacing:

5 mm / 0.197 inch

pole no:

2

rated current:

0.208333333333333

rated current csa use group b:

0.208333333333333

rated current ul use group b:

0.208333333333333

rated current ul use group c:

0.208333333333333

rated current ul use group d:

0.208333333333333

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group c:

150 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

4.020 g

width:

25.2 mm / 0.992 inch
