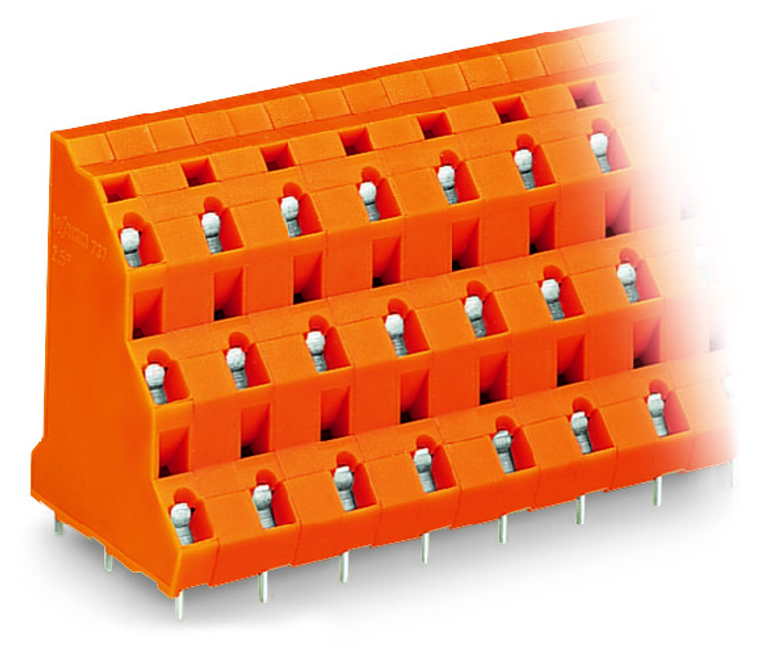

Triple-deck PCB terminal block; 2.5 mm²; Pin spacing 10.16 mm; 24-pole; CAGE CLAMP; 2,50 mm²; orange.
The WAGO component equivalent to 737808 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical installations, ensuring safety and efficiency. This component is known for its ease of use, allowing for quick and tool-free wiring, which makes it a popular choice among electricians and engineers. The WAGO 737808 equivalent is typically used in industrial, commercial, and residential settings to streamline electrical connections and improve overall system performance.
- actuation type:
- Operating tool
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor connection direction to pcb:
- 45
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 31 mm / 1.22 inch
- drilled hole diameter with tolerance:
- 1.3 (+0.1) mm
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.776 MJ
- flammability class per ul94:
- V0
- height:
- 44 mm / 1.732 inch
- height from the surface:
- 40 mm / 1.575 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 630 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 10.16 mm / 0.4 inch
- pole no:
- 24
- rated current:
- 21 A
- rated current 2:
- 21 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage ii 2 2:
- 4 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 2 2:
- 4 kV
- rated surge voltage iii 3:
- 8 kV
- rated surge voltage iii 3 2:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage ii 2 2:
- 630 V
- rated voltage iii 2:
- 1000 V
- rated voltage iii 2 2:
- 320 V
- rated voltage iii 3 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings note:
- Between the modules
- ratings note 2:
- Between the decks
- ratings per:
- IEC/EN 60664-1 || IEC/EN 60664-1
- solder pin arrangement:
- Within the terminal block (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 42.501 g
- width:
- 77.12 mm / 3.036 inch
