2-channel analog input; Resistor bridges (strain gauge).

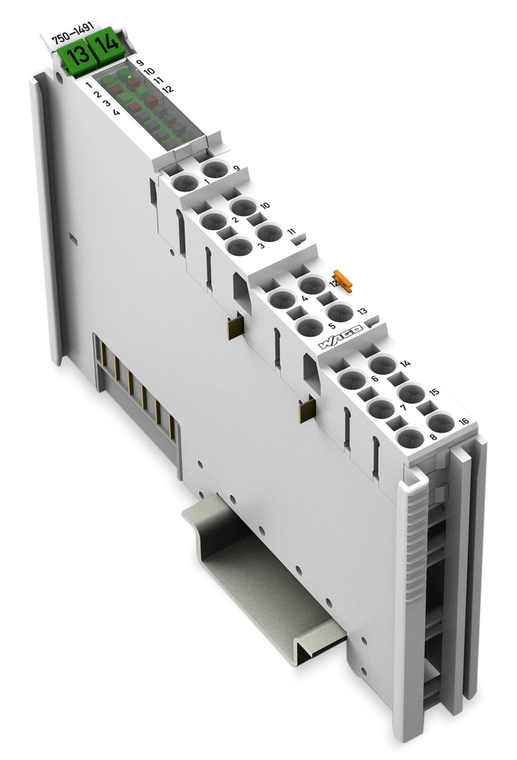

The WAGO 750 series standard analog input slice module features two analog inputs for load cell or strain gauge applications with 16-bit conversion, operates on a 5V DC supply provided by the system, and utilizes Push-in spring CAGE CLAMP connections. It is designed for DIN-35 rail mounting with a 12mm width, has an IP20 protection rating, and is suitable for ambient temperatures ranging from 0°C to +55°C. This module is equivalent to the 7501491 model.
- color:
- Light gray
- conformity marking:
- CE
- connection technology inputs outputs:
- 16 x Push-in CAGE CLAMP
- connection type 1:
- Inputs/outputs
- conversion time:
- 10 ms (min.)
- country of origin sales organisation germany:
- DE
- data width:
- 4 x 16-bit data: 4 x 8-bit control/status (optional)
- depth:
- 69 mm / 2.717 inch
- depth from upper edge of din rail:
- 61.8 mm / 2.433 inch
- emc emission of interference:
- Per EN 61000-6-3
- emc immunity to interference:
- Per EN 61000-6-2
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.25 1.5 mm / 22 16 AWG
- fire load:
- 0.824 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- internal resistance:
- > 200 k (Uref), > 1.4 M (Ud)
- isolation:
- Per UL 61010-2-201: 1.2 kVDC system/channel and channel/channel
- measurement error 25 c:
- UD: 30 V: Uref: 0.05 % of the upper-range value
- measurement error over entire temperature range:
- 0.2 % of the upper-range value: with user calibration up to 0.05 %
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- number of analog inputs:
- 2
- operating altitude:
- 0 2000 m
- packaging type:
- Box
- pollution degree 5:
- 2 per IEC 61131-2
- power consumption 5 v system supply:
- 70 mA
- power consumption system and sensor:
- 200 mA
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- resolution bit:
- 16 bits
- shock resistance:
- 15g per IEC 60068-2-27
- signal type:
- Resistor bridge (strain gauge)
- signal voltage ud:
- 15 mV: 30 mV: 60 mV: 120 mV: 240 mV: 360 mV
- signal voltage uref:
- Internal +5 V: External 5 V: 10 V: 15 V
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage sensor:
- 5 VDC
- supply voltage system:
- 5 VDC: via data contacts
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -40 85 C
- total number of channels module:
- 2
- weight:
- 44.887 g
- width:
- 12 mm / 0.472 inch
