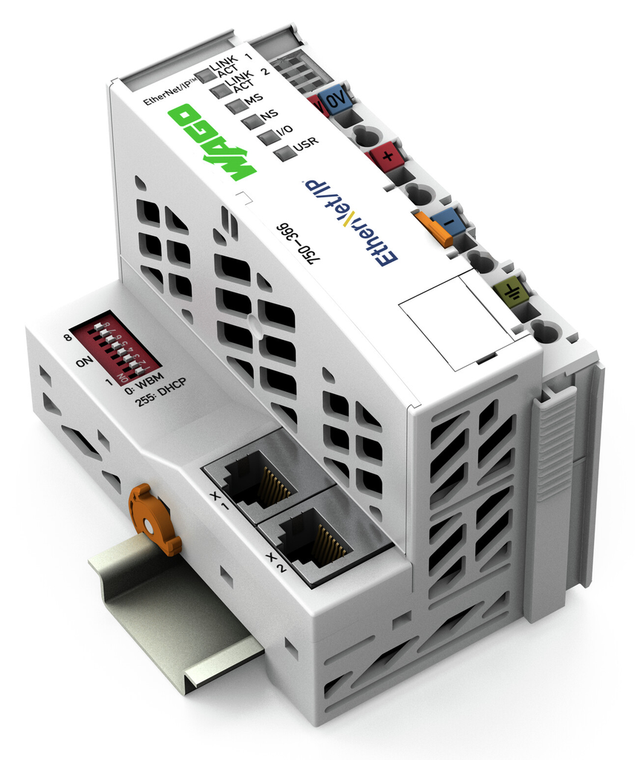

LED (LINK/ACT) green: Network connection via ports 1 2: LED (MS, NS) red/green: Status of node, network: LED (I/O) red/green/orange: Status of local data bus
input and output fieldbus process image max:
1020 Worte/1020 Worte
input current typ at nominal load 24 v:
480 mA
isolation:
500 V system/field
mounting position:
Horizontal (standing/lying): vertical
mounting type:
DIN-35 rail
number of modules per node max:
250
number of modules without a bus extension max:
64
number of outgoing power jumper contacts:
3
operating altitude:
0 2000 m
packaging type:
Box
permissible h2s contaminant concentration at a relative humidity 75:
10 ppm
permissible so2 contaminant concentration at a relative humidity 75:
