4-channel digital input; 24 VDC; 3 ms; Low-side switching.

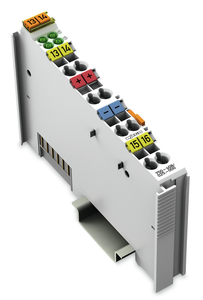

The WAGO 750 series standard DC digital input slice module (model 750-408) features 4 digital inputs (24Vdc transistor, low-side switching, 2-wire/3-wire, 3ms filter) and operates with a supply voltage of 5Vdc provided by the system. It includes spring CAGE CLAMP connections, is designed for DIN-35 rail mounting with a 12mm width, and has an IP20 protection rating. The module is suitable for ambient temperatures ranging from 0°C to +55°C.
- color:
- Light gray
- country of origin sales organisation germany:
- DE
- depth:
- 19 mm / 0.748 inch
- fire load:
- 0.008 MJ
- height:
- 4.1 mm / 0.161 inch
- jumper assignment:
- 2-way
- nominal voltage iii 3:
- 800 V
- packaging type:
- Bag
- rated current:
- 41 A
- rated current ex e ii:
- 33 A
- weight:
- 2.018 g
- width:
- 12.7 mm / 0.5 inch
