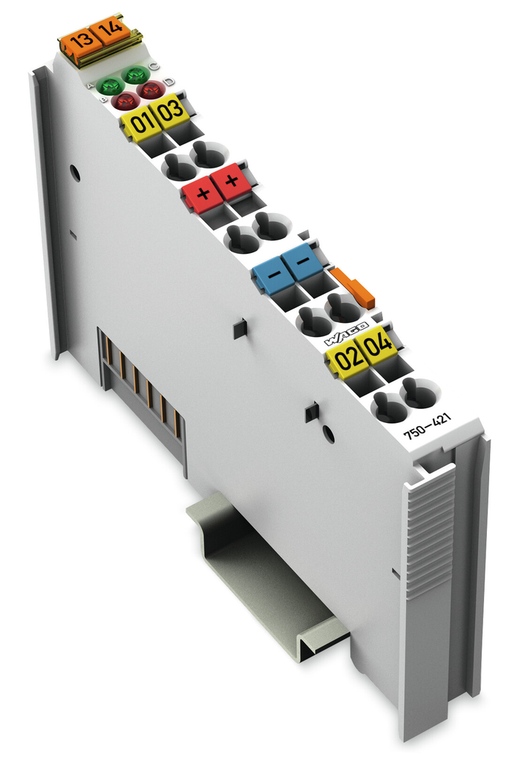

WAGO 750-421

SKU:

750-421

UPC:

MPN:

750-421

Condition:

New

color:

Light gray

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

connection type 1:

Inputs/outputs

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

diagnostics:

Short circuit, automatic acknowledgment after error rectified

emc emission of interference:

Per EN 61000-6-4, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

1.233 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

indicators:

LED (A, C) green: Status DI 1, DI 2: LED (B, D) red: Error DI 1, DI 2

input characteristic:

High-side switching

input current per channel for signal 1 typ:

3.7 mA

input data width internal max:

4 bits

input filter digital:

3 ms

isolation:

500 V system/field

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of digital inputs:

2

number of incoming power jumper contacts:

2

number of outgoing power jumper contacts:

2

operating altitude:

0 2000 m

output current per channel:

0.5 A

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

12 mA

protection type:

IP20

relative humidity without condensation:

0.95

sensor connection:

2 x (2-wire, 3-wire)

shock resistance:

15g per IEC 60068-2-27

short circuit current:

1.5 A, pulsating due to thermal overload protection

signal type:

Voltage

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC (-25 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage sensor:

24 VDC: Short-circuit-protected, isolated channels A short circuit to ground is indicated as an error/fieldbus failure and a message is sent to the supervisory control. The error is canceled automatically after it has been rectified.

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

total number of channels module:

2

vibration resistance:

4g per IEC 60068-2-6

voltage range for signal 0:

3 +5 VDC

voltage range for signal 1:

15 30 VDC

voltage signal type:

24 VDC

weight:

49.805 g

width:

12 mm / 0.472 inch

wiring interface:

Fixed
