Wago

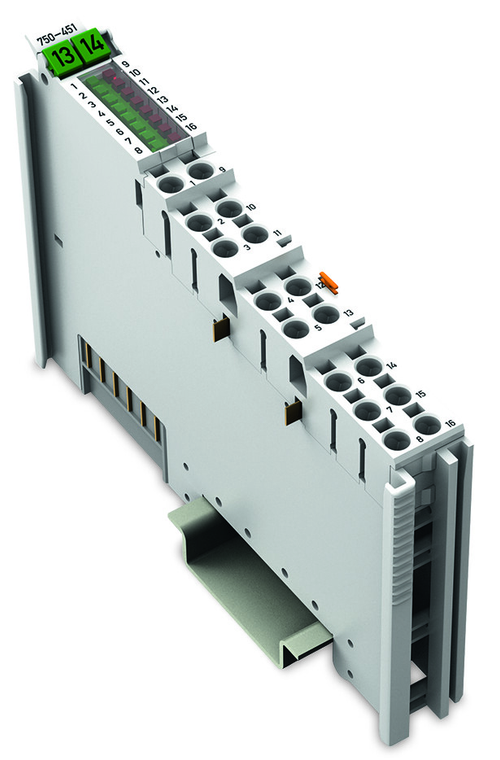

WAGO 750-451/025-000

SKU:

750-451/025-000

UPC:

MPN:

750-451/025-000

Condition:

New

conformity marking:

CE

connection technology inputs outputs:

16 x Push-in CAGE CLAMP

connection type 1:

Inputs/outputs

conversion time typ:

100 ms

country of origin sales organisation germany:

DE

data width:

8 x 16-bit data: 8 x 8-bit control/status (optional)

depth:

69 mm / 2.717 inch

depth from upper edge of din rail:

61.8 mm / 2.433 inch

emc emission of interference:

Per EN 61000-6-3

emc immunity to interference:

Per EN 61000-6-1: EN 61000-6-2

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.25 1.5 mm / 22 16 AWG

fire load:

0.822 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

isolation:

500 V system/field

measured current typ:

¤ 350 A

measurement error 25 c:

¤ 0.6 K (Pt100, Pt200, Pt500, Ni100, Ni120): ¤ 0.2 K (Pt1000, Ni1000): ¤ 0.3 for resistance measurement

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of analog inputs:

8

number of incoming power jumper contacts:

2

number of outgoing power jumper contacts:

2

operating altitude:

0 2000 m

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

110 mA

protection type:

IP20

relative humidity with condensation:

Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of 20 to +60 C (except for wind-driven precipitation, water and ice formation)

relative humidity without condensation:

0.95

resolution over entire range:

0.1 C (over the entire range): 0.01 C (50 150 C: Pt1000, Ni1000)

response time max:

3 s

sensor connection:

8 x (2-wire)

sensor types:

Pt100: Configurable: Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000 (TK6180 + TK5000), Potentiometer: 10R 1k2, 10R 5k0

shock resistance:

15g per IEC 60068-2-27

signal type:

Resistance measurement || Potentiometer positions

signal type configurable:

Yes

solid conductor:

0.08 1.5 mm / 28 16 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC (-25 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

-20 60 C

surrounding air temperature storage:

-40 85 C

temperature range:

200 +850 C (Pt100, Pt200, Pt500, Pt1000), 60 +250 C (Ni100, Ni1000), 80 +260 C (Ni120)

total number of channels module:

8

vibration resistance:

4g per IEC 60068-2-6

weight:

49.000 g

width:

12 mm / 0.472 inch
