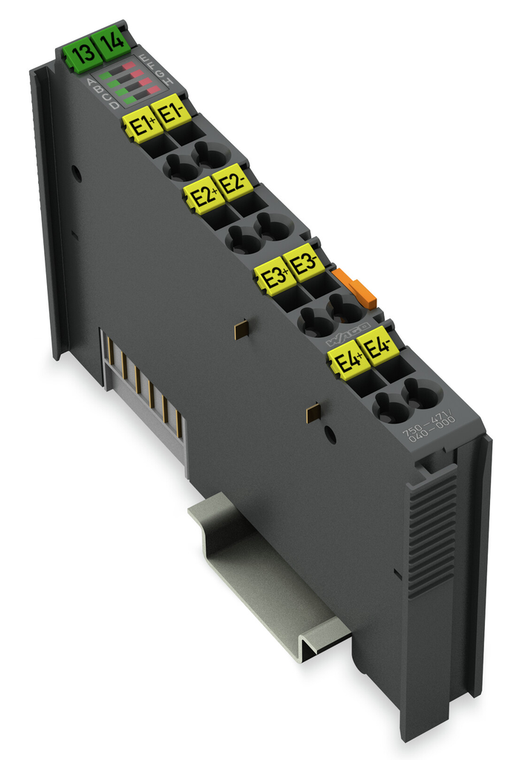

WAGO 750-471/040-000

SKU:

750-471/040-000

UPC:

MPN:

750-471/040-000

Condition:

New

ambient temperature operation:

-40 €¦ +70 °C

color:

Dark gray

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP®

connection type 1:

Inputs/outputs

CONVERSION TIME:

Exception: The ±200 mV measurement range has a conversion time of 10 s and is therefore only suitable for slow systems.

CONVERSION TIME TYP:

10 ms

COUNTRY OF ORIGIN VKORG GERMANY:

DE

CURRENT CARRYING CAPACITY POWER JUMPER CONTACTS:

0.416666666666667

CURRENT CONSUMPTION 5 V SYSTEM SUPPLY:

100 mA

CUSTOMS TARIFF NUMBER VKORG GERMANY:

85389099990

DATA WIDTH:

4 x 16-bit data

DEPTH:

67.8 mm / 2.669 inches

DEPTH FROM UPPER EDGE OF DIN RAIL:

60.6 mm / 2.386 inches

DERATING:

Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 €¦ +30 %)

DIAGNOSTICS:

Measurement range overflow/underflow

DIELECTRIC STRENGTH:

510 VAC/775 VDC

EMC EMISSION OF INTERFERENCE:

Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5

EMC IMMUNITY TO INTERFERENCE:

Per EN 61000-6-1, -2

EXPOSURE TO POLLUTANTS:

Per IEC 60068-2-42 and IEC 60068-2-43

FINE STRANDED CONDUCTOR:

0.25 €¦ 2.5 mm² / 24 €¦ 14 AWG

FIRE LOAD:

0.147 MJ

HEIGHT:

100 mm / 3.937 inches

HOUSING MATERIAL:

Polycarbonate

INPUT FILTER:

50 Hz

INPUT RESISTANCE MAX:

120 ƒŽ©

INPUT VOLTAGE MAX:

31.2 VDC

INTERNAL RESISTANCE:

100 kƒŽ©

ISOLATION:

Functional insulation: 2000 VDC system/channel

MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:

0.001MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=0.003

MEASUREMENT ERROR REFERENCE TEMPERATURE:

25 °C

MEASUREMENT ERROR REFERENCE TEMPERATURE 2:

25 °C

MISMATING PROTECTION:

MOUNTING NOTE=

MOUNTING POSITION:

Horizontal (standing/lying)

MOUNTING TYPE:

DIN-35 rail

NUMBER OF ANALOG INPUTS:

4

NUMBER OF INCOMING POWER JUMPER CONTACTS:

2

NUMBER OF OUTGOING POWER JUMPER CONTACTS:

2

OPERATING ALTITUDE:

Without temperature derating: 0 €¦ 2000 m

PERMISSIBLE H2S CONTAMINANT CONCENTRATION AT A RELATIVE HUMIDITY 75:

10 ppm

PERMISSIBLE SO2 CONTAMINANT CONCENTRATION AT A RELATIVE HUMIDITY 75:

25 ppm

POLLUTION DEGREE 5:

2 per IEC 61131-2

PRODUCT GROUP CODE:

15

PROTECTION TYPE:

IP20

REFERENCE FOR MEASUREMENT ERROR:

Input ranges

REFERENCE FOR MEASUREMENT ERROR 2:

±200 mV

RELATIVE HUMIDITY WITH CONDENSATION:

Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)

RELATIVE HUMIDITY WITHOUT CONDENSATION:

0.95

RESOLUTION BIT:

16 bits

SENSOR CONNECTION:

4 x (2-wire)

SHOCK RESISTANCE:

Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks

SIGNAL CHARACTERISTICS:

Differential

SIGNAL TYPE:

Current || Voltage

SIGNAL TYPE CONFIGURABLE:

Yes

SIGNAL TYPE CURRENT:

0 €¦ 20 mADC

SIGNAL TYPE VOLTAGE:

0 €¦ 10 VDC

SOLID CONDUCTOR:

0.25 €¦ 2.5 mm² / 24 €¦ 14 AWG

STRIP LENGTH:

8 €¦ 9 mm / 0.31 €¦ 0.35 inches

SUPPLY VOLTAGE FIELD:

24 VDC (-25 €¦ +30 %)

SUPPLY VOLTAGE SYSTEM:

5 VDC

SURROUNDING AIR TEMPERATURE STORAGE:

-40 €¦ +85 °C

TEMPERATURE ERROR MAX OF THE UPPER RANGE VALUE:

0.01 %/K

TOTAL NUMBER OF CHANNELS MODULE:

4

VIBRATION RESISTANCE:

Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155

WEIGHT:

82.477 g

WIDTH:

12 mm / 0.472 inches
