1-channel analog input; Resistor bridges (strain gauge).

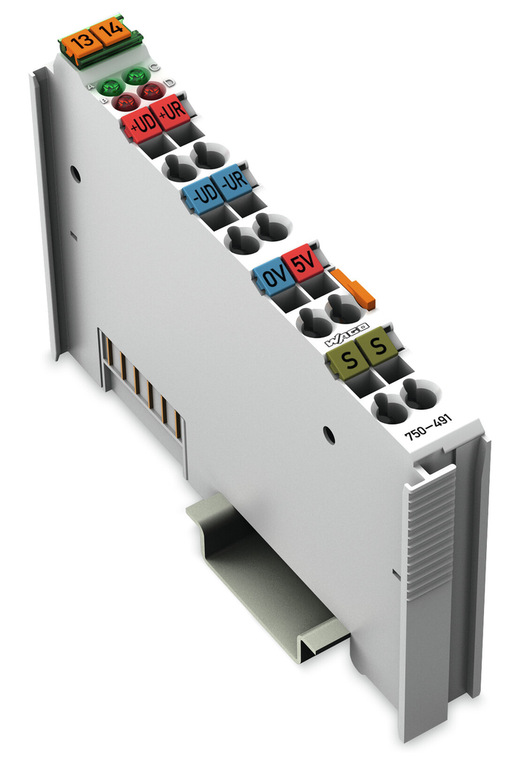

The WAGO 750 series standard analog input slice module is designed for weighing and force measurement applications, featuring one analog input for load cells or strain gauges with a measurement range of -15 to +15mV, 16-bit resolution, and a 500ms conversion time with a 50Hz filter. It operates on a 5V DC supply provided by the system and includes spring CAGE CLAMP connections for secure wiring. The module is mounted on a DIN-35 rail, has a width of 12mm, and is rated for an ambient temperature range of 0°C to +55°C. It meets IP20 protection standards and is equivalent to model 750491.
- color:
- Light gray
- conformity marking:
- CE
- connection technology inputs outputs:
- 8 x CAGE CLAMP
- connection type 1:
- Inputs/outputs
- conversion time typ:
- 500 ms
- country of origin sales organisation germany:
- DE
- data width:
- 2 x 16-bit data: 2 x 8-bit control/status (optional)
- depth:
- 69.8 mm / 2.748 inch
- depth from upper edge of din rail:
- 62.6 mm / 2.465 inch
- emc emission of interference:
- Per EN 61000-6-4, marine applications
- emc immunity to interference:
- Per EN 61000-6-2, marine applications
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- filter:
- 50 Hz
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.085 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- internal resistance:
- > 200 k (Uref), > 1 M (UD)
- isolation:
- 500 V system/field
- measurement error:
- UD: 30 V: Uref: 10 mV
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- number of analog inputs:
- 1
- operating altitude:
- 0 2000 m
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- power consumption 5 v system supply:
- 65 mA
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- resolution bit:
- 16 bits
- shock resistance:
- 15g per IEC 60068-2-27
- signal type:
- Resistor bridge (strain gauge)
- signal voltage ud:
- 15 +15 mV
- signal voltage uref:
- 2 6 V
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage sensor:
- 5 VDC: Supply voltage UV
- supply voltage system:
- 5 VDC: via data contacts
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -40 85 C
- total number of channels module:
- 1
- vibration resistance:
- Per IEC 60068-2-6
- weight:
- 53.000 g
- width:
- 12 mm / 0.472 inch
