Wago

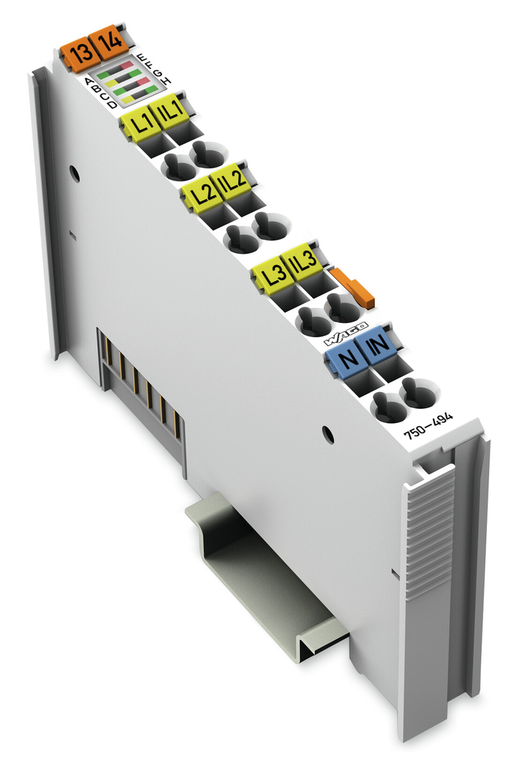

WAGO 750-494

SKU:

750-494

UPC:

MPN:

750-494

Condition:

New

calculated values:

Line-to-line voltage, power output, energy, power factors, mains frequency, harmonic analysis (up to the 41st harmonic), THD

color:

Light gray

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

connection type 1:

Inputs/outputs

country of origin sales organisation germany:

DE

current path input resistance typ:

22 m

data width:

2 x 128-bit data: 2 x 64-bit control/status

depth:

67.8 mm / 2.669 inch

depth from upper edge of din rail:

60.6 mm / 2.386 inch

emc emission of interference:

Per EN 61000-6-3

emc immunity to interference:

Per EN 61000-6-2

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.880 MJ

frequency range harmonics analysis:

0 3300 Hz

frequency range mains frequency:

45 65 Hz

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

isolation:

4 kV system/field

limit frequency:

15.9 kHz

measurement components:

Evaluating

measurement current max:

0.0416666666666667

measurement cycle time:

Adjustable for arithmetic mean value, min./max. values

measurement error deviation max from the upper range value:

0.005

measurement error reference temperature:

25 C

measurement method:

True RMS measurement

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of measurement inputs:

6 (3 voltage measurement inputs, 3 current measurement inputs)

operating altitude:

0 2000 m

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2

power consumption 5 v system supply:

100 mA

protection type:

IP20

rated surge voltage:

4 kV

rated voltage:

ULN = 277 V AC/DC: ULL = 480 VAC

reference for measurement error:

AC current/voltage

relative humidity without condensation:

0.95

resolution bit:

24 bits

shock resistance:

15g per IEC 60068-2-27

signal form:

Any periodic signals (considering the threshold frequencies)

signal type:

Power measurement

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

vibration resistance:

4g per IEC 60068-2-6

voltage path input resistance typ:

1072 k

weight:

49.628 g

width:

12 mm / 0.472 inch
