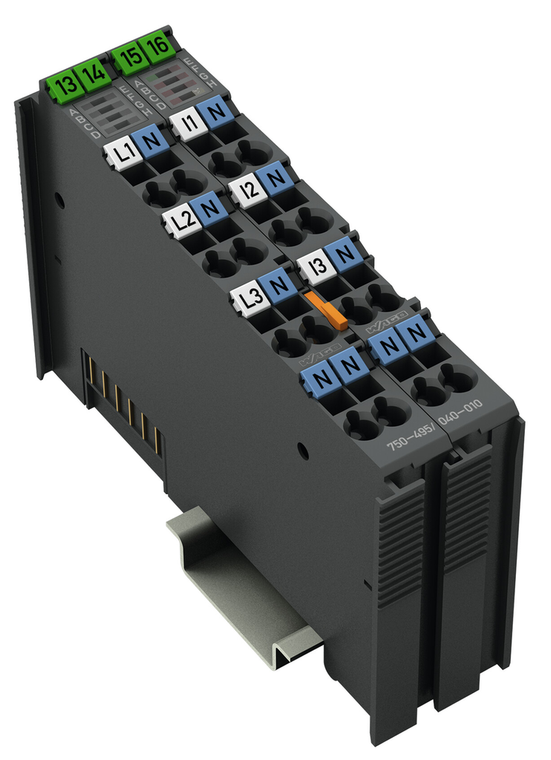

Line-to-line voltage, power output, energy, power factors, mains frequency, harmonic analysis (up to the 41st harmonic), THD
conformity marking:
CE
connection technology inputs outputs:
16 x CAGE CLAMP
connection type 1:
Inputs/outputs
country of origin sales organisation germany:
DE
current path input resistance typ:
20.8
data width:
2 x 128-bit data, 2 x 64-bit control/status
depth:
67.8 mm / 2.669 inch
depth from upper edge of din rail:
60.6 mm / 2.386 inch
emc emission of interference:
Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
emc immunity to interference:
Per EN 61000-6-1, -2: EN 61131-2: marine applications: EN 50121-3-2: EN 50121-4, -5: EN 60255-26: EN 60870-2-1: EN 61850-3: IEC 61000-6-5: IEEE 1613: VDEW: 1994
exposure to pollutants:
Per IEC 60068-2-42 and IEC 60068-2-43
fine stranded conductor:
0.25 2.5 mm / 24 14 AWG
fire load:
0.273 MJ
frequency range harmonics analysis:
45 2665 Hz
frequency range mains frequency:
45 65 Hz
height:
100 mm / 3.937 inch
housing material:
Polycarbonate: polyamide 6.6
limit frequency:
8.6 kHz
measurement error deviation max from the upper range value:
0.003
measurement method:
True RMS measurement
mounting position:
Horizontal (standing/lying): vertical
mounting type:
DIN-35 rail
number of measurement inputs:
6 (3 input pairs for voltage and current measurement sensors)
operating altitude:
Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)
overvoltage category:
III (EN 61010)
packaging type:
Box
permissible h2s contaminant concentration at a relative humidity 75:
10 ppm
permissible so2 contaminant concentration at a relative humidity 75:
25 ppm
power consumption 5 v system supply:
100 mA
protection type:
IP20
rated surge voltage:
4 kV
reference for measurement error:
AC current/voltage
relative humidity with condensation:
Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
relative humidity without condensation:
0.95
resolution bit:
24 bits
shock resistance:
Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks: 25g/6 ms/1,000 shocks), EN 50155, EN 61373
signal form:
Any periodic signals (considering the threshold frequencies)
signal type:
Power measurement
solid conductor:
0.25 2.5 mm / 24 14 AWG
strip length:
8 9 mm / 0.31 0.35 inch
supply voltage system:
5 VDC: via data contacts
surrounding air temperature operation:
-40 70 C
surrounding air temperature storage:
-40 85 C
vibration resistance:
Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155: EN 61373
