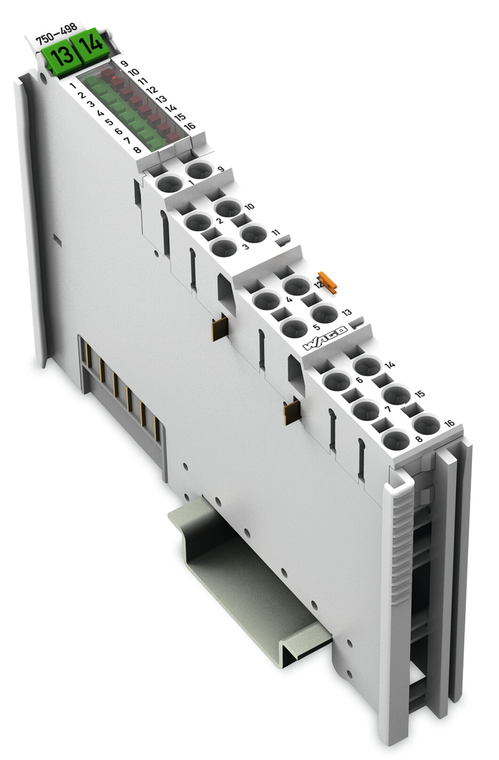

The 750-498 I/O Module measures either voltages (mV) in the field or analyzes thermocouples.
Depending on the sensor selection for the respective I/O module, the voltage value is output directly or converted into the respective temperature value.
Based on the measured values supplied by the thermocouple and the cold junction temperature, the I/O module determines the corresponding temperature at the measurement point of the thermocouple used.
The I/O module has eight input channels, providing a direct connection from thermocouples to 2-wire sensors.
The field level and the system level are electrically isolated from one another.
Technical data
Connection data
| Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP® |
| Connection type (1) | Inputs/outputs |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inch |
Physical data
| Width | 12 mm / 0.472 inch |
| Height | 100 mm / 3.937 inch |
| Depth | 69 mm / 2.717 inch |
| Depth from upper edge of DIN-rail | 61.8 mm / 2.433 inch |
Mechanical data
| Mounting type | DIN-35 rail |
Material data
| Color | light gray |
| Housing material | Polycarbonate, polyamide 6.6 |
| Weight | 48.9 g |
| Conformity marking | CE |
Environmental requirements
Commercial data
| Packaging type | BOX |
| Country of origin | DE |
| GTIN | 4055143944380 |
| Customs tariff number | 85389099990 |
The WAGO 750 series standard analog input slice module (model 750498) features 8 analog inputs for thermocouples of types K, J, B, E, N, R, S, T, and C with a 0.1°C resolution and 2-wire connection. It operates on a 5V DC supply voltage provided by the system and utilizes Push-in spring CAGE CLAMP connections. Designed for DIN-35 rail mounting with a 12mm width, it is rated for ambient temperatures ranging from 0°C to +55°C and has an IP20 protection rating.
- cold junction compensation:
- Module-internal based on a cold junction temperature measurement
- color:
- Light gray
- conformity marking:
- CE
- connection technology inputs outputs:
- 16 x Push-in CAGE CLAMP
- connection type 1:
- Inputs/outputs
- conversion time:
- ¤100 ms (per channel), activated notch filter: ¤50 ms (per channel), deactivated notch filter
- country of origin sales organisation germany:
- DE
- data width:
- 8 x 16-bit data: 8 x 8-bit control/status (optional)
- depth:
- 69 mm / 2.717 inch
- depth from upper edge of din rail:
- 61.8 mm / 2.433 inch
- emc emission of interference:
- Per EN 61000-6-3, EN 61131-2
- emc immunity to interference:
- Per EN 61000-6-2, EN 61131-2
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.25 1.5 mm / 22 16 AWG
- fire load:
- 0.824 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- isolation:
- 500 V system/field
- measurement error 25 c:
- With cold junction compensation: ¤ 1 K (type E, N, K, T, J) at -50 C: ¤ 2 K (type S, R, C) at 100 C: ¤ 3 K (type B) at 350 C: (Please find additional measurement error information in the manual.)
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- number of analog inputs:
- 8
- number of incoming power jumper contacts:
- 2
- number of outgoing power jumper contacts:
- 2
- operating altitude:
- 0 2000 m
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- power consumption 5 v system supply:
- 100 mA
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- resolution over entire range:
- 0,1 C
- sensor connection:
- 8 x (2-wire)
- sensor types:
- Type K, J, B, E, N, R, S, T, C: Voltage measurement: 30 mV: 60 mV: 120 mV: 240 mV
- shock resistance:
- 15g per IEC 60068-2-27
- signal type:
- Thermocouple || Low voltages
- signal type configurable:
- Yes
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage field:
- 24 VDC (-25 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)
- supply voltage system:
- 5 VDC: via data contacts
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -40 85 C
- temperature coefficient:
- Type K: 0.05 K/K of the upper-range value: Voltage measurements: 50 ppm/K of the upper-range value
- temperature error max of the upper range value:
- 0.05 %/K
- total number of channels module:
- 8
- vibration resistance:
- 4g per IEC 60068-2-6
- weight:
- 48.900 g
- width:
- 12 mm / 0.472 inch
