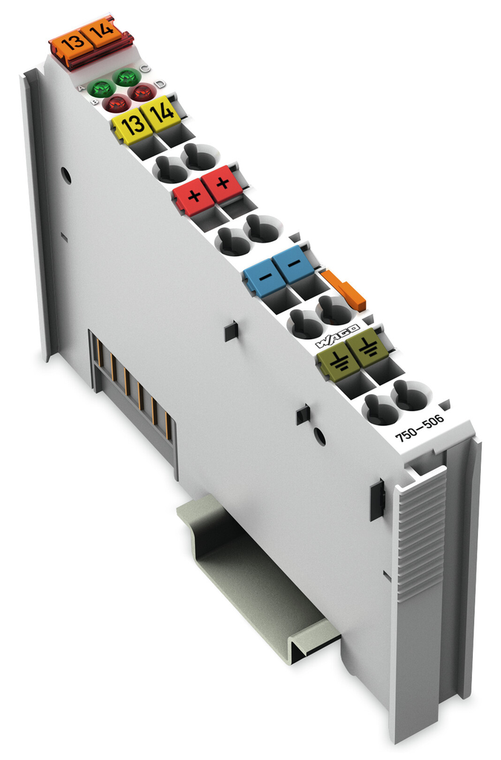

WAGO 750-506

SKU:

750-506

UPC:

MPN:

750-506

Condition:

New

actuator connection:

2 x (2-wire, 3-wire, 4-wire)

color:

Light gray

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

connection type 1:

Inputs/outputs

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

diagnostics:

Open circuit, overload and short circuit

emc emission of interference:

Per EN 61000-6-4

emc immunity to interference:

Per EN 61000-6-2

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

1.375 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

indicators:

LED (A, C) green: Status DO 1, DO 2: LED (B, D) red: Error DO 1, DO 2

inductive load switch off energy dissipation max:

0.2 J

input data width internal max:

2 bits

isolation:

500 V system/field

load type:

Resistive, inductive, lamp load

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of digital outputs:

2

number of incoming power jumper contacts:

3

number of outgoing power jumper contacts:

3

open circuit detection:

9.5 mA

operating altitude:

0 2000 m

output characteristic:

High-side switching

output current:

Short-circuit-protected

output current per channel:

0.5 A

output internal data width max:

2 bits

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

15 mA

power consumption field supply module with no external load:

15 mA

protection type:

IP20

relative humidity without condensation:

0.95

reverse voltage protection:

No

shock resistance:

15g per IEC 60068-2-27

short circuit limitation typ pwm:

1.5 A

signal type:

Voltage

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC (-15 +20 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

switching frequency max:

5 kHz

total number of channels module:

2

vibration resistance:

Per IEC 60068-2-6

voltage signal type:

24 VDC

weight:

48.000 g

width:

12 mm / 0.472 inch

wiring interface:

Fixed
