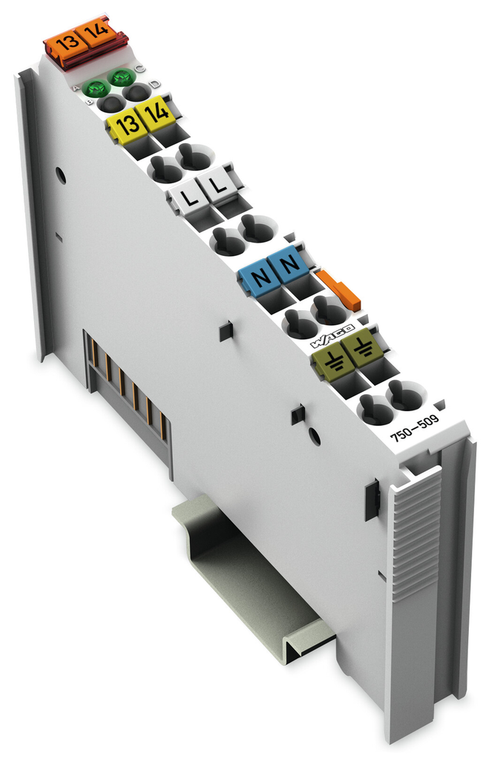

WAGO 750-509

2-channel digital output; 230 VAC; 0.3 A; Solid-state

Technical Data

• Number of digital outputs: 2
• Total number of channels (module): 2
• Type of signal: Voltage
• Type of signal voltage: AC/DC 0 ˜ 250 V
• Actuator connection: 2 x (2-conductor, 3 Leiter)
• Output switching design: solid-state load relay
• Output current per channel: 0.3 A
• Protection against incorrect wiring: berspannungsschutz 275 V ber Varistor
• Switching frequency max.: 5 Hz; 24 V; 0,3 A; DF = 50 %
• Switching frequency max. (2): 0.5 Hz; 230 V; 0,3 A; DF = 50 %
• Type of load: resistive, inductive
• Load type of the switching frequency: 24 V; 0,3 A; DF = 50 %
• Contact resistance max.: 0.032
• Contact resistance typ.: 2.1
• Making capacity: 0.5 A (20 s)
• Making capacity (2): 1.5 A (0.1 s)
• Pull-in time (max.): 10 ms
• Pull-in time (typ.): 4 ms
• Drop-out time (max.): 3 ms
• Drop-out time (typ.): 0.1 ms
• Max output data width (internal): 2 bit
• System supply voltage: DC 5 V; via data contacts
• Current consumption, system supply (5 V): 10 mA
• Field supply voltage: AC/DC 250 V; via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Isolation: 1500 V system/field
• Indicators: LED (A, C) green: Status DO 1, DO 2
• Number of incoming power jumper contacts: 3
• Number of outgoing power jumper contacts: 3
• Current carrying capacity of the power jumper contacts: 10 A

Connection Data

• Connection technology: In-/Outputs: 8 x CAGE CLAMP
• Connection type (1): Inputs/Outputs
• Solid conductor: 0.08 ˜ 2.5 mm / 28 ˜ 14 AWG
• Fine-stranded conductor: 0.08 ˜ 2.5 mm / 28 ˜ 14 AWG
• Strip length: 8 ˜ 9 mm / 0.31 ˜ 0.35 inch

Geometrical Data

• Width: 12 mm / 0.472 inch
• Height: 69.8 mm / 2.748 inch
• Height from upper-edge of DIN-35 rail: 62.6 mm / 2.465 inch
• Depth: 100 mm / 3.937 inch

Mechanical Data

• Type of mounting: DIN-35 rail

Material Data

• Color: light gray
• Housing material: Polycarbonate, polyamide 6.6
• Fire load: 1.248 MJ
• Weight: 50.921 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air (operating) temperature: 0 ˜ 55 C
• Surrounding air (storage) temperature: -40 ˜ 85 C
• Protection class: IP20
• Degree of pollution (5): 2 per IEC 61131-2
• Operating altitude: 0 ˜ 2000 m
• Mounting position: horizontal (standing/lying) or vertical
• Relative air humidity (no condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: acc. to EN 61000-6-2, marine applications
• EMC emission of interference: acc. to EN 61000-6-4, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H₂S contaminant concentration at a relative humidity <lt/> 75 %: 10 ppm
• Permissible SO₂ contaminant concentration at a relative humidity <lt/> 75 %: 25 ppm

Commercial data

• Packaging type: BOX
• Country of origin: DE
• GTIN: 4045454393403
• Customs Tariff No.: 85371098990

.

The WAGO 750 series standard AC/DC digital output slice module (750509 equivalent) features 2 digital outputs with solid-state relays capable of handling 0 to 230V AC/DC at 0.3A. It operates on a 5V DC supply provided by the system and includes spring CAGE CLAMP connections for secure wiring. Designed for DIN-35 rail mounting with a compact 12mm width, it is rated for ambient temperatures from 0°C to +55°C and has an IP20 protection rating.
