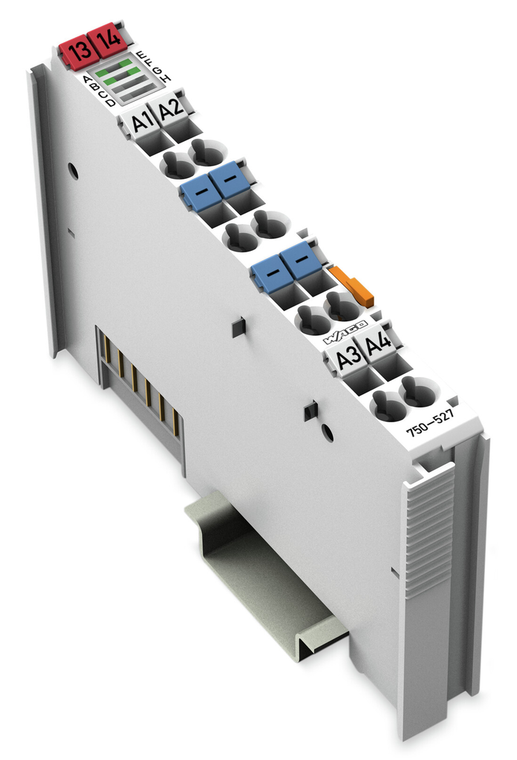

WAGO 750-527

(No reviews yet) Write a Review

Write a Review

WAGO 750-527

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

750-527

UPC:

MPN:

750-527

Condition:

New

actuator connection:

4 x (2-wire)

color:

Light gray

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

contact resistance max:

0.035

contact resistance typ:

0.02

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

delay time t off from 1 to 0:

20000 s

delay time t on from 0 to 1:

1000 s

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

emc emission of interference:

Per EN 61000-6-3, -4: marine applications

emc immunity to interference:

Per EN 61000-6-1, -2: marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.881 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

indicators:

LED (A, B, E, F) green: Status DO 1 DO 4

inductive load switch off energy dissipation max:

0.18 J

isolation:

500 V system/field

load type:

Resistive: inductive (Limit induction voltage peaks externally.)

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of digital outputs:

4

number of incoming power jumper contacts:

2

number of outgoing power jumper contacts:

2

operating altitude:

0 2000 m

output characteristic:

High-side switching

output current:

Requires external fuses

output current module:

0.333333333333333

output current per channel:

0.0833333333333333

output internal data width max:

4 bits

overvoltage category:

II

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2

power consumption 5 v system supply:

57 mA

power consumption field supply module with no external load:

0 mA

protection class:

III

protection type:

IP20

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

signal type:

Voltage

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

30 VAC/DC, SELV: via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

switching frequency max:

1 Hz

total number of channels module:

4

vibration resistance:

4g per IEC 60068-2-6

voltage signal type:

30 VAC/DC

weight:

50.000 g

width:

12 mm / 0.472 inch

wiring interface:

Fixed
