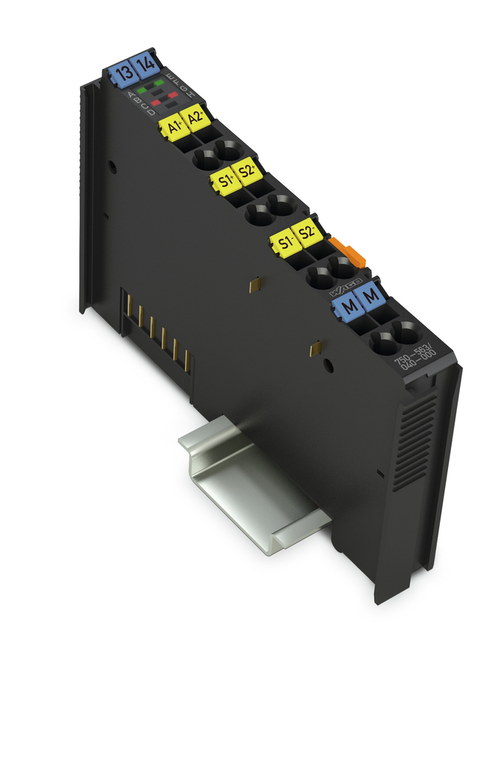

WAGO 750-563/040-000

SKU:

750-563/040-000

UPC:

MPN:

750-563/040-000

Condition:

New

actuator connection:

2 x (2-wire, 4-wire)

color:

Dark gray

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

connection type 1:

Inputs/outputs

conversion time typ:

5 ms

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.416666666666667

data width:

2 x 16-bit data: 2 x 8-bit control/status (optional)

depth:

67.8 mm / 2.669 inch

depth from upper edge of din rail:

60.6 mm / 2.386 inch

derating:

Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 +30 %): for 40 +55 C: 24 V (min. +20 %): for +55 +70 C: 24 V (min. +10 %): Voltage range (min.): 21,6 V: Current range (m

dielectric strength:

510 VAC/775 VDC: per EN 60870-2-1

emc emission of interference:

Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5

emc immunity to interference:

Per EN 61000-6-1, -2: EN 61131-2: marine applications: EN 50121-3-2: EN 50121-4, -5: EN 60255-26: EN 60870-2-1: EN 61850-3: IEC 61000-6-5: IEEE 1613: VDEW: 1994

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.25 2.5 mm / 24 14 AWG

fire load:

0.147 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

load impedance current output:

¤ 500

load impedance voltage output:

1.8 k

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of analog outputs:

2

number of incoming power jumper contacts:

2

number of outgoing power jumper contacts:

2

operating altitude:

Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)

output error deviation max of the upper range value:

0.0005

output error reference temperature:

25 C

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

95 mA

protection type:

IP20

rated surge voltage:

1 kV

recovery time typ:

0.3 ms

relative humidity with condensation:

Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)

relative humidity without condensation:

0.95

resolution bit:

16 bits

shock resistance:

Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks: 25g/6 ms/1,000 shocks), EN 50155, EN 61373

signal type:

Current || Voltage

signal type configurable:

Yes

signal type current:

0 20 mADC: 4 20 mADC

solid conductor:

0.25 2.5 mm / 24 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC (-15 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact): Derating must be observed!

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

-40 70 C

surrounding air temperature storage:

-40 85 C

temperature coefficient:

< 100 ppm

total number of channels module:

2

vibration resistance:

Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155: EN 61373

voltage signal type:

6 18 VDC

weight:

51.000 g

width:

12 mm / 0.472 inch
